START HEREChapter 00

Start here

Welcome to CompEx Ready. This is the closest thing to sitting the actual course. First time or back for a refresher, assessment week is mapped out here in full: what you will face, what each assessment demands, and the knowledge you need to handle it. It is an aid, not a shortcut. Work through it properly and you will walk into the assessment centre ready to hit the ground running.

There's no time limit and no rush. Whether you've booked your course or you're just seeing what CompEx involves, take your time and work through at your own pace.

Units Ex01-04 · Gas and Vapours
UnitWhat it covers
Ex01Preparation and installation of Ex d, Ex e, Ex n and Ex p systems
Ex02Inspection and maintenance of Ex d, Ex e, Ex n and Ex p systems
Ex03Preparation and installation of Ex i systems
Ex04Inspection and maintenance of Ex i systems

This guide covers CompEx Ex01-04 only, Gas, Vapour and Mist: the core CompEx qualification and the one most candidates sit. The remaining modules (dust, forecourts, mechanical, responsible person) are covered in Chapter 01, and our guides for them are coming soon.

The reality

CompEx has a reputation for being difficult, because it covers unfamiliar concepts, standards and terminology. The good news is it follows a logical system: each chapter builds on the last, so worked through in order it comes together. Thousands of tradespeople from all backgrounds and avenues have passed it, and so can you.

Our promise

Work through this guide in order, understanding each chapter before you move on, and you'll walk into assessment week knowing exactly what to expect. The zones, symbols, markings and protection concepts will be second nature, not something you are meeting cold.

Two ways in

Two ways in, depending on where you are starting from.

A New to CompEx

Start at Chapter 1 and work through in order, one chapter at a time. Every chapter ends with a multiple-choice test: aim for 80% or better before moving on. Use the cheat sheet to drill the key facts until they stick.

B Back for a refresher

If you are returning for your five-year refresher, this guide gets you back to assessment standard quickly. Work through the chapters to restore what has faded, let the tests expose the gaps, and star anything you get wrong for a targeted revision list.

CompEx Ready Road map

Your road to ready.

Start here
1
Understand it
01 What is CompEx · 02 The Course & the 5 Tests
2
Learn the theory
03 Hazardous Areas · 04 Legislation · 05 The Science · 06 Zones & Marking · 07 Protection Concepts
3
Prepare for the assessments
08 Installation · 09 Inspection · 10 Exam Prep
4
Test & revise
Mock exam · Cheat sheet · Your revision guide
COMPEX READY

Works on your phone, tablet or laptop, and picks up where you left off. If something is in this guide, it is because the assessment asks for it.

Work in short bursts of 30 to 45 minutes. It's a lot to take in, but the guide is built to feed it to you in the right order, one step at a time, so it stays manageable.

5-day course
4 practical assessments
60-question online exam
Pass every unit
Valid 5 years
Symbols you will see

> greater than · < less than · ≥ greater than or equal to · ≤ less than or equal to. Limits and thresholds use these all through the guide and the exam.

Track your progress

Tick off each chapter as you finish it, and it is marked complete in the menu.

Chapter in progress
Chapter complete

Chapter difficulty

Each chapter shows a rating in its header, so you know what to expect before you start.

Foundations Learning the language.
Moderate Concepts start connecting.
Challenging Most people read this one twice.

Revision mode

There is a Revision mode toggle in the top right of every page. Switch it on and the key facts you need for the assessments and the multiple-choice exam are highlighted throughout the guide, so you can see exactly what to focus on. Switch it off any time for a clean read.

Test Your Knowledge

As you work through the guide you sit short topic tests, and a full mock exam that mirrors your multiple-choice assessment. Test Your Knowledge saves your latest result on each, so you can see how you are getting on and where you still need work. You will find it in the guide menu.

One account, one person

Your access is for you alone. If your login is shared, or used on more than one device at the same time, your access will be revoked with no refund. You can appeal your case, but the simplest thing is to keep it to yourself. Full detail is in our Terms.

What CompEx is, who runs it, where it is recognised, and where Ex01-04 sits in the scheme.

CompEx in five lines
  1. Some workplaces hold gas or vapour that can explode.
  2. Ordinary electrical kit can set it off, even a spark or a hot surface.
  3. CompEx proves you are competent to select, install and inspect equipment there safely.
  4. Ex01-04 is the core route for gas and vapour work, and it's this guide.
  5. You prove it through hands-on assessments and a closed-book exam.

CompEx is short for Competency in Explosive Atmospheres. It is a scheme that proves an individual has the core competence to work on electrical and instrumentation equipment in hazardous areas without introducing danger into the workplace. It is not a product approval and it is not a paper qualification. It is proof that you, the person, can do the work safely.

It was created by EEMUA (the Engineering Equipment and Materials Users Association) and is run today by CompEx Certification Limited (CCL), part of the JTL Group. It is built on the IEC 60079 series of international standards, primarily parts 10, 14 and 17. Those three run through everything you will sit: classifying the area, installing to standard, and inspecting and maintaining it.

The three standards behind it

60079-10 classifies the hazardous area. 60079-14 covers design, selection and installation. 60079-17 covers inspection and maintenance. Know those three numbers and what each one does. Exam

Why it exists

Hazardous-area work went unregulated until a long line of disasters forced standards into being (Chapter 03 covers those). The law now says a person must be competent before they work where danger could arise, and CompEx is the recognised way of proving that competence. It is the practical answer to the legal duty set out in the Electricity at Work Regulations, which we come to in Chapter 04.

The CompEx module map

The full scheme is around fifteen modules, each covering a different type of work or environment, plus refresher versions to requalify. This guide is Ex01-04, the Gas and Vapours modules, because it is the most widely sat and the foundation most hazardous-area careers are built on. Here is how the whole scheme fits together.

ModuleWhat it covers
Ex01-04Gas, vapour and mist atmospheres. The one this guide is for.
Ex05-06Combustible dust atmospheres
Ex07-08Petrol forecourts
Ex09-10Water and waste water industry
Ex11Mechanical craft in hazardous areas
Ex12Design and project engineers
Ex14Responsible person (managing Ex compliance)
ExF / ExF+Foundation, entry-level awareness

Refresher modules (Ex01R-04R and Ex07R-08R) exist to requalify before your certificate expires, rather than sitting the full course again.

Where it is recognised

CompEx is built on the IEC 60079 international standards, so it carries weight anywhere that works to the IEC zone system: the UK, Europe, the Middle East, Africa and much of Asia. That is why it is a benchmark on oil and gas, petrochemical, LNG and offshore work.

Some countries do not use CompEx and run their own scheme instead.

RegionWhat they use
UK, Europe, Middle East, Africa, much of AsiaCompEx, on the IEC 60079 zone system
Australia and New ZealandEEHA, assessed to AS/NZS 4761. The IECEx CoPC is the accepted route, not CompEx
USA and CanadaThe Class and Division system, under their national electrical codes
International alternativeIECEx CoPC, the IEC's own competence certificate
Be clear on this

CompEx proves your competence. It is not a legal permit on its own. Site access, authorisation and local law still apply on top. Remember

First time or refresher

If this is your first CompEx, you sit the full five-day course and all the assessments (Chapter 02 breaks the week down). Pass, and your certificate is valid for five years.

Before those five years are up, you take a shorter refresher to requalify rather than starting from scratch. This is why the scheme has a built-in cycle, and why the skills stay current rather than fading after one exam.

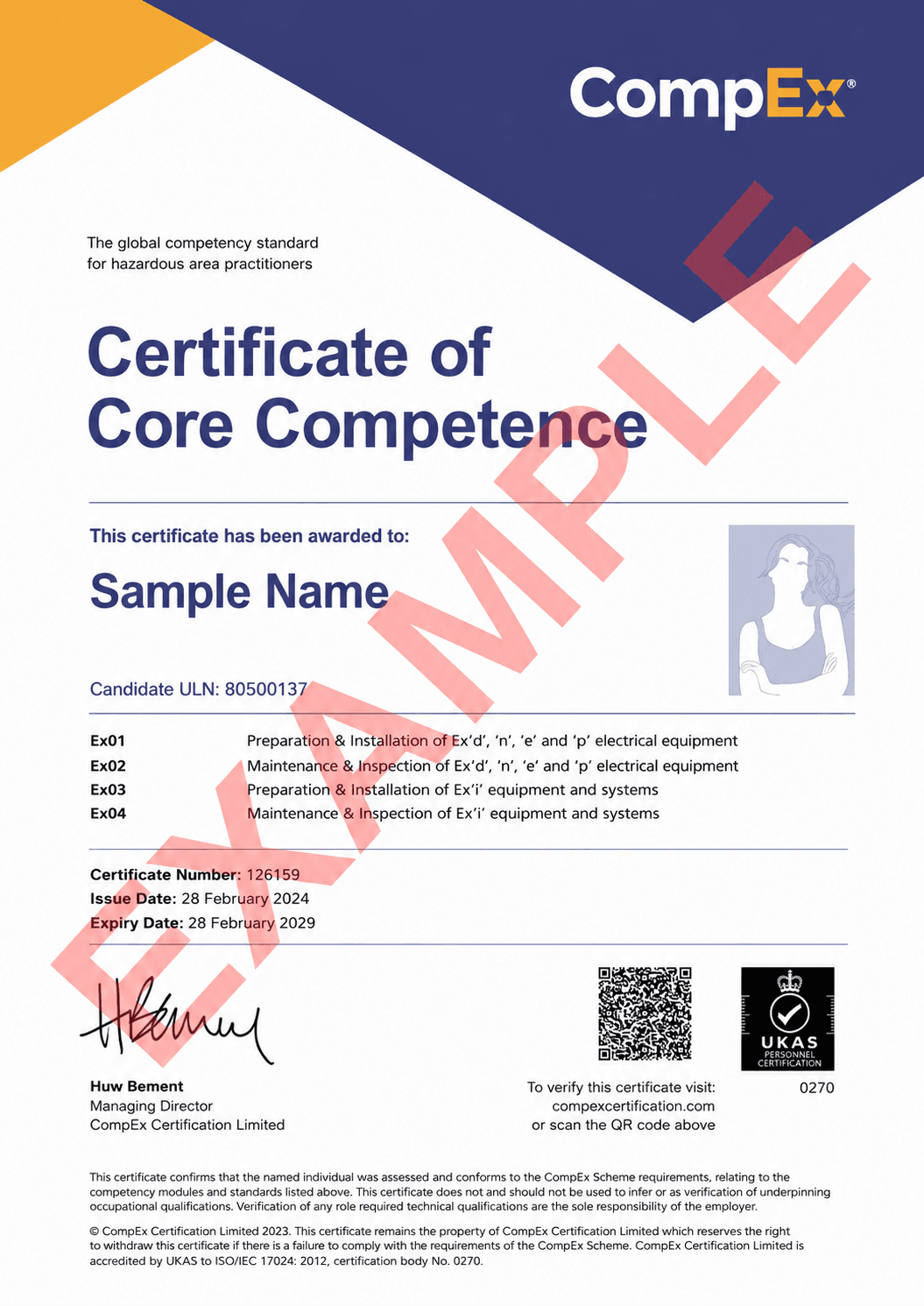

Example CompEx Certificate of Core Competence
What you walk away with

A CompEx Certificate of Core Competence, valid five years, earned by passing four practical assessments and one closed-book online exam. The full breakdown is next, in Chapter 02.

You can now
  • Say what CompEx is and who runs it
  • Name the three standards behind it: 60079-10, 14 and 17
  • Place Ex01-04 in the wider module map, and know where it is recognised
Next: The Course & The 5 Tests →

What the week looks like, the five things you are assessed on, and how to handle each one.

In this chapter
  • How the five-day week runs, and the five assessments you must pass
  • What the closed-book online exam asks, and why every unit is marked on its own
  • How this builds on Chapter 01: now you know what CompEx is, here is how you earn it
By the end you'll know the shape of the week and what each assessment expects of you.

How the week works

CompEx Ex01-04 is a five-day course. The early part of the week is instruction and hands-on practice on the rigs. The back end is assessment. You are tested on five things: two practical installations, two inspections and one online exam. You must pass all five to be certified.

The five tests

Ex01 install, Ex02 inspection, Ex03 install, Ex04 inspection, and the online multiple-choice exam. Ex01 and Ex02 deal with Ex d, e, n and p. Ex03 and Ex04 deal with Ex i (intrinsic safety). Exam

The four practical assessments

Ex01 Install

Prepare and install Ex d, e, n and p systems. Practical. 3 hrs 45 mins.

Ex02 Inspection

Inspect and find the faults on Ex d, e, n and p systems. 1 hr 30 mins.

Ex03 Install

Prepare and install Ex i (intrinsically safe) systems. Practical. 3 hrs.

Ex04 Inspection

Inspect and find the faults on Ex i systems. 1 hr 15 mins.

The installs test your ability to work to documentation and to wire, terminate and install hazardous area equipment competently. The inspections test the same discipline in reverse: working to the documentation, spotting the faults and hazards, exactly as you would on a live site. The exact timetable varies by training centre, but the assessments and their lengths do not.

The online exam

The fifth test is a closed-book online multiple-choice exam: 60 questions in 90 minutes. Watch the scoring: right-clicking an answer scores it out, so read every question twice and answer with a left click. We drill the real question style in Chapter 10.

What the exam covers

The 60 questions are drawn from across the whole syllabus. There is no published split of marks per area, but everything falls into five knowledge areas, and they are exactly the chapters of this guide.

What you must pass, and resits

You must pass all four practical assessments and the online exam to receive your certificate. Slip up and the rules are clear.

If you failWhat you resit
A practical assessmentOnly the module you failed: fail Ex01, resit Ex01 only
Any unit of the online examThe full 60-question exam again
The resit limit

You get two resit attempts, and they must be completed within 12 months of your original assessment date. Fail all your resits, or go past the 12 months, and you resit the full course. Remember

How to handle the week

Nerves are normal. The candidates who do well are the ones who slow down and work methodically. On the practicals, take your time on selection and follow the drawings exactly. On the inspections, work to a system so you do not miss faults. On the exam, read every question twice and be deliberate with every click. Preparation is what removes the panic, and that is what this guide is for.

You can now
  • List the five assessments and what each one tests
  • Explain the online exam format and the right-click scoring trap
  • Know the resit rules and the twelve-month limit
Next: Hazardous Areas →

Where this all came from, what it takes to cause an explosion, and the disasters that wrote the rules you work to.

In this chapter
  • What a hazardous area is, and the three things an explosion needs at once
  • The ignition sources you control, since preventing them is the whole point of the work
  • Where the rules came from, so the standards in the next chapter make sense
By the end you'll understand the fire triangle and why every later rule traces back to it.

What a hazardous area is

A hazardous area is any place where flammable gases, vapours or dusts can be present in enough quantity to cause an explosion. Equipment installed there has to be specially designed and tested so it cannot set off that atmosphere, whether from an arcing contact or a hot surface.

Think of an ordinary light switch. The small spark when you flick it is harmless in your house. Put that same spark in a flammable vapour and it can start an explosion. That is the whole problem this qualification exists to manage.

You will find hazardous areas on oil refineries, offshore platforms, drilling rigs, gas storage and transmission, sewage works, paint stores, distilleries, pharmaceutical plants, grain mills, sugar refineries, fertiliser stores and saw mills.

What it takes to explode

A gas or vapour explosion needs three things present at once: fuel, oxygen and a source of ignition. Take any one away and there is no explosion. This is the fire triangle, and it is the idea every other rule is built on.

IGNITION SOURCE FUEL OXYGEN EXPLOSION remove any one side and it cannot happen

Fuel is the hazardous gas, vapour or mist. Oxygen comes from the air around us (roughly 21%). The ignition source is the one we have most control over, and it is where most of the engineering effort goes.

Ignition sources to know

Electrical sparks (opening and closing contacts, short circuits), hot surfaces and open flames, mechanical and friction sparks, and thermite reactions (aluminium striking rusty steel). Personal items count too: phones, smart watches, matches and lighters. Aluminium ladders are not permitted in hazardous areas. Exam

Where it all began

The first hazardous areas were found in coal mines, which carried a double hazard: firedamp (the gases in a mine, mainly methane) and coal dust. Standards were born here, because the lamps and candles miners carried kept causing fires and explosions.

Early gas detection was crude. The Davy lamp came first, around 1815: a fine wire mesh that lets gas pass in but stops a flame passing back out, so any small ignition inside the lamp could not reach the mine. Then the canary bird was introduced in the 1890s, and used right up until 1986, reacting to gas before the miners did.

The disasters that wrote the rules

Almost every rule in this guide was paid for by an incident. Three you should know:

Senghenydd 1913

439 miners died. An electric bell signalling system: two bare wires sparked when touched together and ignited methane.

Piper Alpha 1988

167 men died. A North Sea gas explosion. Poor permit-to-work and fire doors never upgraded to blast doors. Lord Cullen's inquiry found 100+ failings; every recommendation is used today.

Buncefield 2005

0 dead, 40 injured. Tank 912 was filled blind after a failed level switch. The vapour cloud found an ignition source and burned for five days. Containment failed.

Why this matters to you

Every one of these came down to an ignition source meeting fuel and oxygen. Your job in a hazardous area is to make sure that never happens. The rest of this guide is how you do it. Remember

You can now
  • Define a hazardous area and name the three sides of the fire triangle
  • List the main ignition sources, including personal items
  • Explain how Senghenydd, Piper Alpha and Buncefield shaped the rules
Next: Legislation & Standards →

The law and the standards behind the work, kept to only what the exam asks of you.

In this chapter
  • The laws that make competent, safe work a legal duty, not a choice
  • The two ATEX directives, and the UK regulations they became
  • How this backs up Chapter 03: those disasters led straight to these rules
By the end you'll know which law does what, and where the 60079 standards fit.

Primary and secondary law

Primary legislation is an Act of Parliament, part of statute law, for example the Health and Safety at Work Act 1974. Secondary legislation is the regulations made under an Act (Statutory Instruments), which let the law be updated without writing a whole new Act, for example DSEAR 2002.

HASAWA 1974

The Health and Safety at Work Act is the primary piece of legislation covering occupational health and safety in the UK. It places a general duty on employers to ensure, so far as is reasonably practicable, the health, safety and welfare of their employees, and that duty extends to other people too, not just staff. It also places duties on manufacturers of equipment, covering its design, construction and safe operation.

Electricity at Work Regulations 1989

The EAWR covers electrical systems, work activities and protective equipment, including protecting equipment from harsh conditions: mechanical damage, excessive temperature or pressure, wet, dirty, dusty or corrosive conditions, and flammable or explosive substances.

Regulation 16: competence

No person shall carry out work where technical knowledge or experience is needed to prevent danger or injury unless they have that knowledge or experience, or are properly supervised. This is the legal reason CompEx exists. Exam

The ATEX Directives

ATEX is the name for the two European Directives that control explosive atmospheres. Know which is which, and the UK regulations each one became.

DirectiveKnown asCoversUK law
2014/34/EUATEX 114Equipment and protective systems (technical)EPS Regulations
1999/92/ECATEX 153Health and safety of workers (social)DSEAR

Memory hook: 114 is for the equipment, 153 is for the workers. Remember

EPS Regulations and DSEAR

The EPS Regulations (Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres) put ATEX 114 into UK law. Equipment must meet the Essential Health and Safety Requirements before it is sold or put into service, normally proven by testing and certification through a third-party Notified Body. Equipment for Zone 2 only can be self-certified by the manufacturer.

DSEAR (Dangerous Substances and Explosive Atmospheres Regulations 2002) puts ATEX 153 into UK law. It requires employers to assess the risks of fire and explosion from dangerous substances, then eliminate or reduce them as far as is reasonably practicable, and to classify and mark hazardous places.

Certification marks

The certification marks you will see on a nameplate.

IECEx scheme logo alongside the ATEX Ex-in-hexagon mark

IECEx / ATEX

IECEx is the international scheme, accepted worldwide. ATEX is the European scheme, shown by the Ex-in-a-hexagon mark. Kit is very often certified to both, so you will see both marks on the one nameplate.

The UKCA mark for Great Britain

UKCA

UKCA (UK Conformity Assessed) is the Great Britain mark brought in after the UK left the EU. Kit sold in Great Britain now carries UKCA, usually alongside CE, and the Ex requirements are identical under both.

Standards and the 60079 series

A standard is an agreed way of doing something, written by experts and approved by a recognised body. Three levels matter: BS (British, from BSI), EN (European, from CENELEC) and IEC (International). Electrical equipment for hazardous areas runs in the 60079 series.

StandardCovers
60079-0General requirements
60079-10-1Hazardous area classification (gas)
60079-14Design, selection and installation
60079-17Inspection and maintenance
60079-19Repair, overhaul and reclamation

The three you will lean on most are 10 (classify), 14 (install) and 17 (inspect), the same three from Chapter 01.

You can now
  • Tell primary law from secondary, with HASAWA and DSEAR as examples
  • Match ATEX 114 to equipment and ATEX 153 to workers, and name their UK laws
  • Recognise the IECEx, ATEX and UKCA marks and the 60079 series
Next: The Science of Explosions →

The properties that decide whether a gas will ignite, and the numbers the exam keeps coming back to. Get these straight and equipment selection in the next chapter falls into place.

In this chapter
  • The properties that decide whether a gas will ignite, and the numbers behind them
  • Two ideas the exam leans on hardest: gas groups and temperature classes
  • How this turns Chapter 03's fire triangle into figures you can select kit from
By the end you'll read flash point, flammable range, gas group and T-class with confidence.

Flash point

The flash point is the lowest liquid temperature at which a liquid gives off enough vapour to form an ignitable vapour and air mixture. Below it, there simply is not enough vapour to catch.

Know the numbers

A liquid with a flash point below 37°C is flammable (for example petrol). Between 37°C and 93°C it is combustible (for example diesel). Paraffin sits around 38°C. Exam

Vapour density: does the gas rise or fall?

Air is the reference, given a relative density of 1.0. A gas lighter than air rises. Heavier than air, it sinks and gathers at the lowest point.

Density vs airBehaviourExamples
< 1.0RisesHydrogen, methane
> 1.0Sinks, spreads lowMost gases and vapours
Lighter than air, it rises Hydrogen, methane AIR · relative density 1.0 Heavier than air, it sinks
Air is the reference, relative density 1.0. Lighter-than-air gas such as hydrogen or methane rises; heavier-than-air vapour sinks and collects in the bottom of pits, trenches and bunds, exactly where you do not want an ignition source.

Why it matters on site: heavier-than-air vapour pools in pits, trenches and bunds, exactly where you do not want an ignition source.

The flammable range

A gas only ignites within a window of concentration. Too little fuel and it is too lean. Too much and it is too rich. Between the two limits, it will go.

Too lean
no ignition
FLAMMABLE RANGE
will ignite
Too rich
no ignition
0% gas · 100% airLFL to UFL100% gas · 0% air

Remember  LFL is the Lower Flammable Limit (too lean below it). UFL is the Upper Flammable Limit (too rich above it). The band between them is the flammable range.

There are more numbers in this chapter than anywhere else in the guide, and that puts a lot of people off. You do not need them all at once. Take one property at a time, learn what it tells you, and the figures start to stick on their own.

Minimum ignition energy

Minimum ignition energy (MIE) is the smallest amount of energy needed to set off a gas and air mixture. The lower that number, the more easily the gas ignites, and it is one of the things used to sort gases into groups.

GasApprox. ignition energy
Hydrogen~19 µJ (lowest, most easily ignited)
Ethylene~85 µJ
Propane~260 µJ
Methane (firedamp)~280 µJ

µJ = microjoules. The less energy a gas needs, the more dangerous it is, which is exactly why hydrogen sits in the toughest group.

Gas groups

Gases are sorted into groups by how easily they ignite. The more volatile the gas, the less energy it needs, and the tougher the equipment has to be.

GroupVolatilityRepresentative gas
IICMost volatile, least energy to ignite (only ~5 gases)Hydrogen, acetylene
IIBMore volatile than IIA (~67 gases)Ethylene
IIALeast volatile, most energy to ignite (~252 gases)Propane
The rule that catches people out

Equipment certified for a higher group covers the ones below it. IIC equipment can be used in IIB and IIA areas, but not the other way round. Exam

Those subgroups sit inside the bigger picture of three equipment groups:

GroupWhere it appliesExamples
IMining (firedamp)Methane
IISurface, gas & vapourIIA propane · IIB ethylene · IIC hydrogen, acetylene
IIISurface, dustIIIA flyings · IIIB non-conductive · IIIC conductive

CompEx Ex01-04 is all Group II, gas and vapour. Mining is Group I, dust is Group III.

Ignition temperature

The ignition temperature is the temperature at which a gas ignites on its own, with no spark or flame, just from touching a hot surface. It used to be called the auto-ignition temperature (AIT). This is the number a piece of equipment's surface must never reach.

Temperature classification

The T-class is the maximum surface temperature the equipment can reach. It must always stay below the ignition temperature of the gas around it.

Hotter surface Cooler = safer T1T2T3 T4T5T6 450°C300°C200°C 135°C100°C85°C A lower class covers the higher ones: T4 kit suits any T1 to T4 area.
The temperature class is the hottest the equipment's surface is allowed to get. It must stay below the gas ignition temperature, and a cooler rating always covers a hotter one. T6 (85°C) is the safest.
T1 450°C T2 300°C T3 200°C T4 135°C T5 100°C T6 85°C Methane 595°C → T1 Hydrogen 560°C → T1 · IIC Propane 470°C → T1 · IIA Ethylene 425°C → T2 · IIB Acetylene 305°C → T2 · IIC Hexane 225°C → T3 Carbon disulphide 95°C → T6 °C
Where real gases land on the scale. A gas can only be used with equipment whose temperature-class limit sits below the gas’s own ignition temperature, so the lower a gas ignites, the more restrictive the class it needs. Carbon disulphide at 95°C is the classic worst case, needing T6.
On the day

A T6 rating (85°C max) is safe in any area, whether it calls for T1, T2, T3, T4, T5 or T6. A cooler surface always covers a higher class, which is why T6 is the safest rating. This single idea drives half the equipment-selection questions. Remember

How it all links

Two threads run through this chapter: ignition energy sets the gas group (less energy means a higher group, IIC the worst), and ignition temperature sets the temperature class (equipment must stay cooler than the gas will tolerate). Selecting kit in Chapter 06 is just applying these two. Remember

You can now
  • Explain flash point, vapour density and the flammable range
  • Link ignition energy to the gas group, and ignition temperature to the T-class
  • See why a cooler T-class and a higher gas group always cover more
Next: Zones, Selection & Marking →

Read an area, choose the right kit, and decode a label without breaking a sweat. This is the chapter that turns the science into selection.

In this chapter
  • What the three Zones are, and how an area gets divided into them
  • Why the grade of release decides the Zone
  • Why almost every protection concept depends on this
By the end you'll classify an area and know what its Zone means for equipment selection.

How an area is classified

Hazardous areas are split into zones based on how often an explosive atmosphere is present and how long it lasts. The more likely and the longer-lasting, the more onerous the zone. For gas and vapour the classification standard is 60079-10-1.

Don't try to memorise the numbers yet. Understand the one idea, how often the atmosphere is there, and the zones make sense on their own.

Grades of release

Before the zone comes the grade of release, which is how often a flammable substance escapes. The grade generally decides the zone.

Grade of releaseHow oftenTypically gives
ContinuousMore than 1000 hours/yearZone 0
Primary10 to 1000 hours/yearZone 1
Secondary0 to 10 hours/yearZone 2

The three zones

ZoneExplosive atmosphere isExample
Zone 0Present continuously, for long periods or frequentlyThe vapour space inside a tank
Zone 1Likely to occur occasionally in normal operationPump and compressor seals, valves
Zone 2Not likely in normal operation, and short-lived if it doesPipe joints and flanges

Zone drawing symbols

On an area classification drawing each zone has its own hatching. Hover or tap a zone in the table above (or a symbol below) and its pair lights up. Always check the drawing key, but these are the standard symbols.

Zone 0small circles
Zone 145° cross-hatch
Zone 245° slanting lines
Non-hazardousblank

A worked example: a storage tank

This is the classic one, and it shows how the zones nest. The most dangerous atmosphere is sealed inside the tank, and the risk fades the further out you go.

ZONE 2 ZONE 1 Zone 0 vapour space non-hazardous beyond

The vapour space above the liquid is Zone 0 (gas almost always there). Around the vent and seals is Zone 1 (gas likely now and then). A wider envelope is Zone 2 (only if something goes wrong). Past that, non-hazardous.

In plain terms: where you find each zone

Picture a whisky distillery. Deep inside the stills and storage vats is Zone 0, alcohol vapour is almost always there. Around the still vents and sample points is Zone 1. The wider still-house floor is Zone 2. Here is the same idea across a few everyday places.

ZoneIn plain terms, where you would find it
Zone 0Inside fuel tanks, inside a still or storage vat, inside a chemical reactor
Zone 1Around still vents and sample points, a spray-paint booth in a car factory, a fuel tanker loading point
Zone 2The wider distillery or factory floor, a warehouse stacked with drums of solvent, around sealed pipework in a plant

The link that ties it all together

This is the most important table in the chapter. It connects the zone to the equipment you are allowed to put in it, through the EPL (the IEC marking) and the ATEX category (the European marking). They are two names for the same thing.

Zone 0Gas almost always present
GaEPL
1GATEX
Very high protectionStays safe with two faults
Zone 1Gas likely now and then
GbEPL
2GATEX
High protectionStays safe with one fault
Zone 2Gas only if something goes wrong
GcEPL
3GATEX
Normal or enhancedSafe in normal operation
The rule that runs through the exam

Equipment for a more onerous zone can always be used in a less onerous one. A Ga (Zone 0) device is fine in Zone 1 or Zone 2, but a Gc (Zone 2) device is not allowed in Zone 1 or 0. For mining (Group I) the categories are M1 (stays energised) and M2 (de-energised when gas is present). Exam

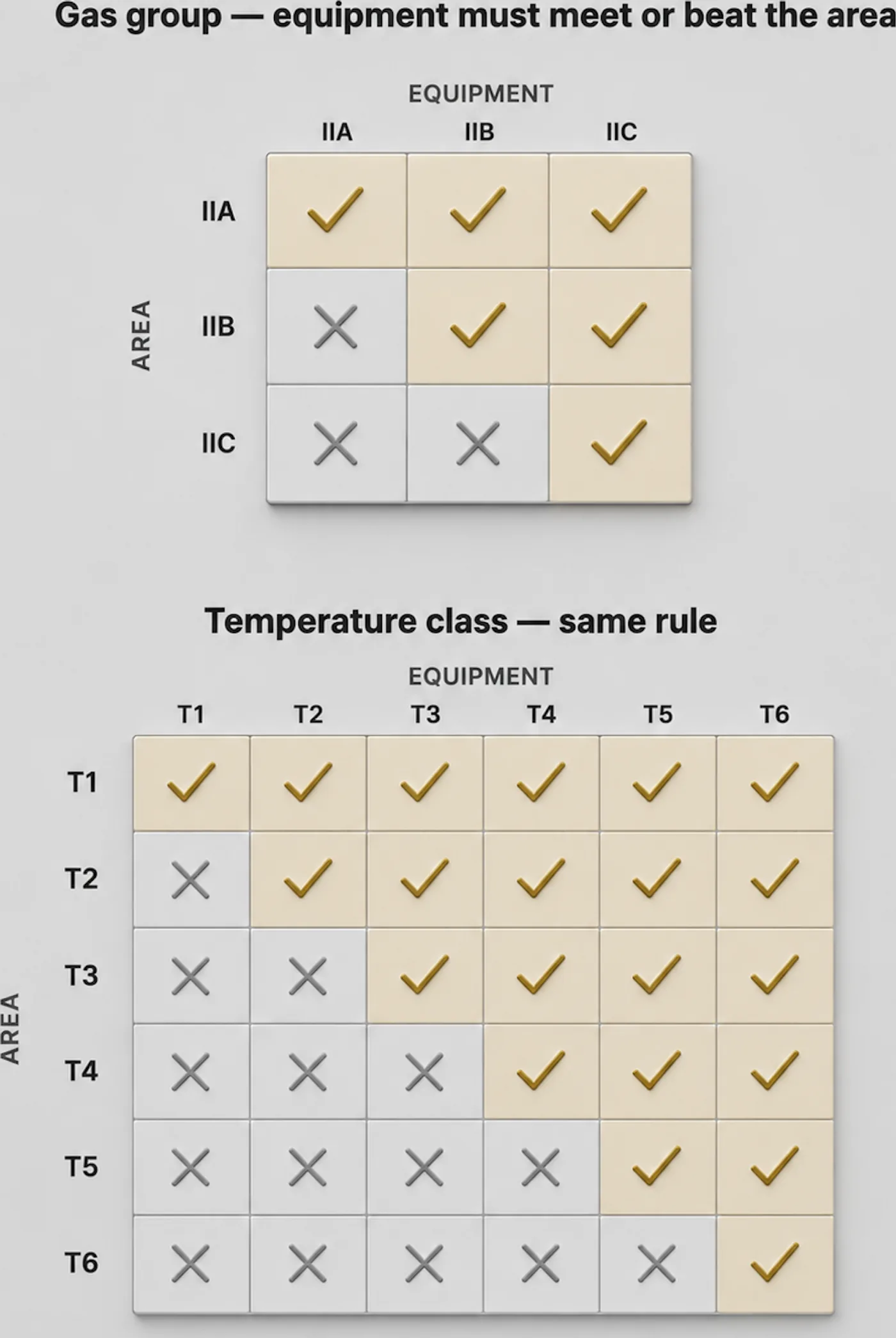

Selection matrices: gas group and temperature class, equipment must meet or beat the area
The same rule in both grids: the equipment rating must equal or beat the area. A more onerous rating (a higher gas group, or a cooler temperature class) always covers a less onerous area, never the other way round.

The complete picture: every group

The map above is the gas one you live in. For completeness, the same EPL, category and zone link runs across all three environments. Your exam is the middle block, Group II, gas.

EPLGroupATEX categoryZoneProtection
GaII gas1G0Very high, two faults
GbII gas2G1High, one fault
GcII gas3G2Normal
MaI miningM1n/aVery high, stays energised in gas
MbI miningM2n/aHigh, de-energised when gas is present
DaIII dust1D20Very high
DbIII dust2D21High
DcIII dust3D22Normal

Memory hook: the EPL letter (a/b/c) and the category number (1/2/3) always line up, and both point straight to the zone.

IP ratings

The IP (Ingress Protection) code, from IEC 60529, is two digits after the letters IP. The first digit is protection against solids and dust (0 to 6), the second is protection against water (0 to 9). Where a digit is not rated it is shown as an X, for example IPX4.

Worth knowing

IP66 means fully dust-tight and protected against powerful water jets. The minimum for most Ex concepts is IP54. Exam

First digit: solids & dust

#Keeps out
0Nothing
1Solids > 50 mm (back of hand)
2Solids > 12.5 mm (finger)
3Solids > 2.5 mm (tools, wires)
4Solids > 1 mm (fine wires)
5Dust protected
6Dust tight

Second digit: water

#Protects against
0Nothing
1Dripping water
2Dripping, tilted 15°
3Spraying water (60°)
4Splashing water
5Water jets
6Powerful jets
7Immersion up to 1 m
8Immersion beyond 1 m

Reading a label

Put it all together and a marking like Ex eb IIC T6 Gb reads piece by piece. Each part of the string is doing a job:

Ex eb IIC T6 Gb
Ex
Explosion protected, built to the IEC 60079 standards.
eb
Protection concept and its level. Here increased safety (e), level b.
IIC
Gas group it is certified for. IIC is the most demanding.
T6
Temperature class. T6 is 85°C max surface temperature, the coolest.
Gb
Equipment Protection Level. Gb suits Zone 1.

Alongside it the ATEX marking II 2 G means Group II (surface industry), Category 2, Gas. The same information, the European way.

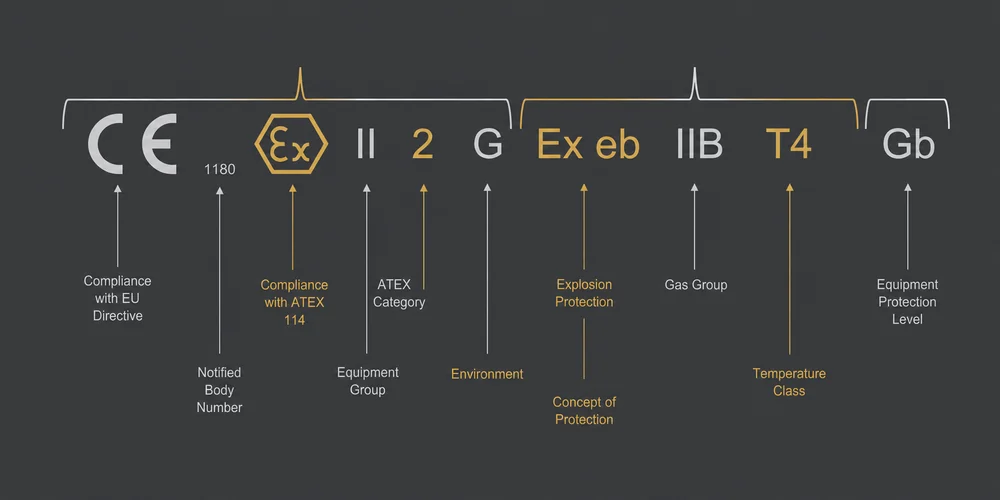

Full Ex equipment label broken down: CE, Notified Body, ATEX Ex mark, group, category, gas, then Ex eb IIB T4 Gb
The whole label at a glance. The front half (CE, the Notified Body number, the ATEX Ex mark, group, category and gas) says where the kit is allowed. The back half (Ex, the protection concept, gas group, temperature class and EPL) says how it is protected.

The certificate number on the label reads the same way. Take Baseefa 19 ATEX 1234 X:

PartWhat it tells you
BaseefaThe Notified Body that certified it
19Year of certification
ATEXCertified to the ATEX directive
1234The certificate number
XSpecific conditions of use apply, listed on the certificate
UAn Ex component, not finished kit, to be built into something else

X and U never appear together: X means read the special conditions, U means it is a building block, not standalone equipment.

Four markings you will meet

Read each one at a glance, the way you would on a real piece of kit.

Nameplate: II 2 G Ex db IIC T4 Gb flameproof motor
II surface industry · 2 G Category 2, gas (Zone 1) · Ex db flameproof · IIC hydrogen group · T4 surface stays ≤135°C · Gb suits Zone 1.
Nameplate: II 2 G Ex eb IIC T6 Gb increased-safety luminaire
II surface industry · 2 G Category 2 (Zone 1) · Ex eb increased safety · IIC hydrogen group · T6 surface ≤85°C, the coolest · Gb Zone 1.
Nameplate: II 1 G Ex ia IIB T5 Ga intrinsically safe transmitter
II surface industry · 1 G Category 1, gas (Zone 0) · Ex ia intrinsic safety, the only Zone 0 kit · IIB ethylene group · T5 surface ≤100°C · Ga Zone 0.
Nameplate: II 3 G Ex nA IIA T3 Gc Zone 2 control station
II surface industry · 3 G Category 3, gas (Zone 2) · Ex nA non-sparking · IIA propane group · T3 surface ≤200°C · Gc Zone 2.
Two letters worth knowing on a certificate number

An X at the end means specific conditions of use apply (check the certificate). A U means it is an Ex component, not a finished piece of equipment. The standard ambient (Ta) is -20°C to +40°C unless the label says otherwise. Exam

The same kit, around the world

The protection concepts are global, but the marking changes by region. Here is the same flameproof, gas-group IIC, T4 fitting under the three big schemes.

IECEx · worldwide
Ex db IIC T4 Gb

The international scheme, used across the UK, Europe, the Middle East, Asia and Australia. The baseline the others map to.

ATEX · EU & GB
II 2 G Ex db IIC T4 Gb

Adds the equipment group, category and gas, shown with the Ex-in-hexagon mark and CE or UKCA. The same protection, the European way.

North America
Class I, Div 1, Gp B–D, T4

The older Division system. The newer Zone system mirrors IEC: Class I, Zone 1, AEx db IIC T4.

Gas-group cross-reference: IEC IIC covers North American Groups A and B, IIB is about Group C, and IIA is about Group D.

That is the end of the knowledge half of the guide. The General Principles test below covers everything from Chapters 01 to 06.

You can now
  • Explain what Zones 0, 1 and 2 mean
  • Link grades of release to each Zone
  • See why the protection concepts build on this
Next: Protection Concepts →

The heart of the qualification. Each concept is just a different way of breaking the fire triangle, by containing the bang, keeping the gas out, stopping the spark, or starving it of energy.

In this chapter
  • The main protection concepts, and the one idea each uses to break the fire triangle
  • Ex d, e, n, i and p in the detail the exam and the practicals expect
  • How Chapter 05's science and Chapter 06's zones decide which concept you can use
By the end you'll tell the concepts apart and know where each one belongs.

How protection works

Every concept comes down to one of five basic methods of stopping an uncontrolled ignition:

MethodConcepts that use it
Contain the explosionEx d (flameproof)
Keep the flammable substance outEx p, Ex o, Ex q, Ex m
Stop sparks and hot surfaces happeningEx e, Ex n

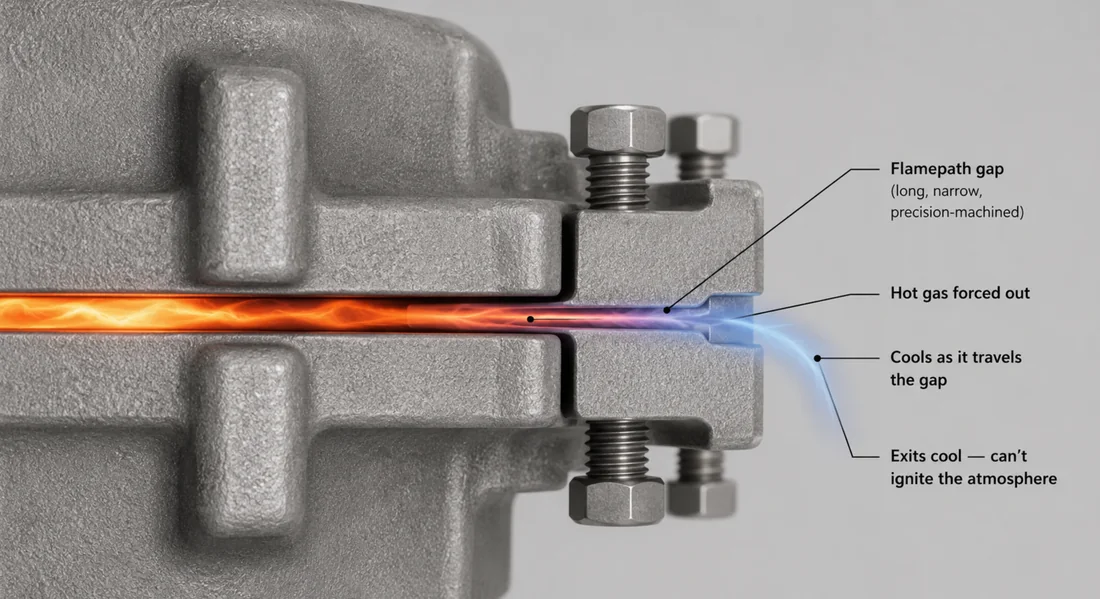

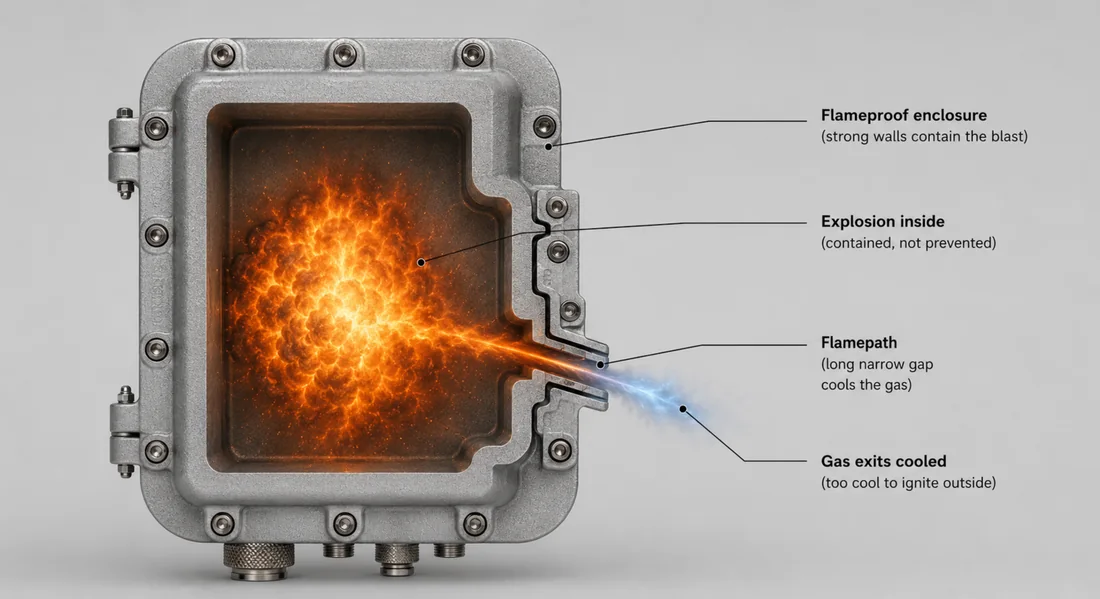

Quench the explosion as it tries to escapeEx d (the flamepaths)
Limit the energy below what can igniteEx i

The concepts at a glance

Tap any concept to jump straight to it.

ConceptMarkHow it protectsStandard
FlameproofEx dContains the explosion inside the enclosure60079-1
Increased safetyEx eStops arcs, sparks and hot surfaces60079-7
Intrinsic safetyEx iLimits energy below ignition60079-11
PressurisationEx pKeeps gas out with overpressure60079-2
Reduced riskEx nWill not ignite in normal operation (Zone 2)60079-15
EncapsulationEx mSeals the parts in a solid compound60079-18
Oil immersionEx oImmerses the parts in oil60079-6
Powder filledEx qSurrounds the parts in fine powder60079-5
Optical radiationEx opKeeps optical or laser energy safe60079-28
SpecialEx sTested and proven case by case60079-33

We take them one at a time below. Each ends with a drill on that exact concept.

This is the biggest chapter in the guide, so do not try to take it in all at once. Work through one concept at a time, use the drill at the end of each to check it has stuck, and come back to the harder ones. Few people hold all of it after a single read, and you are not meant to.

Glands and cable entry

Gland selection comes up on nearly every concept and on the practicals, so learn it once here. A gland seals the cable into the enclosure, holds the ingress protection, and where needed keeps earth continuity. Since 2008 a gland entering a certified enclosure must itself be certified.

Two markings you will see: E1W is for steel wire armoured (SWA) cable, A2 is for non-armoured. A barrier gland (compound filled) is needed on an ignition-capable Ex d enclosure into IIC or IIB+H2, or where the cable length and internal volume demand it. On a gland certificate, X means fixed equipment only and U means it is a component.

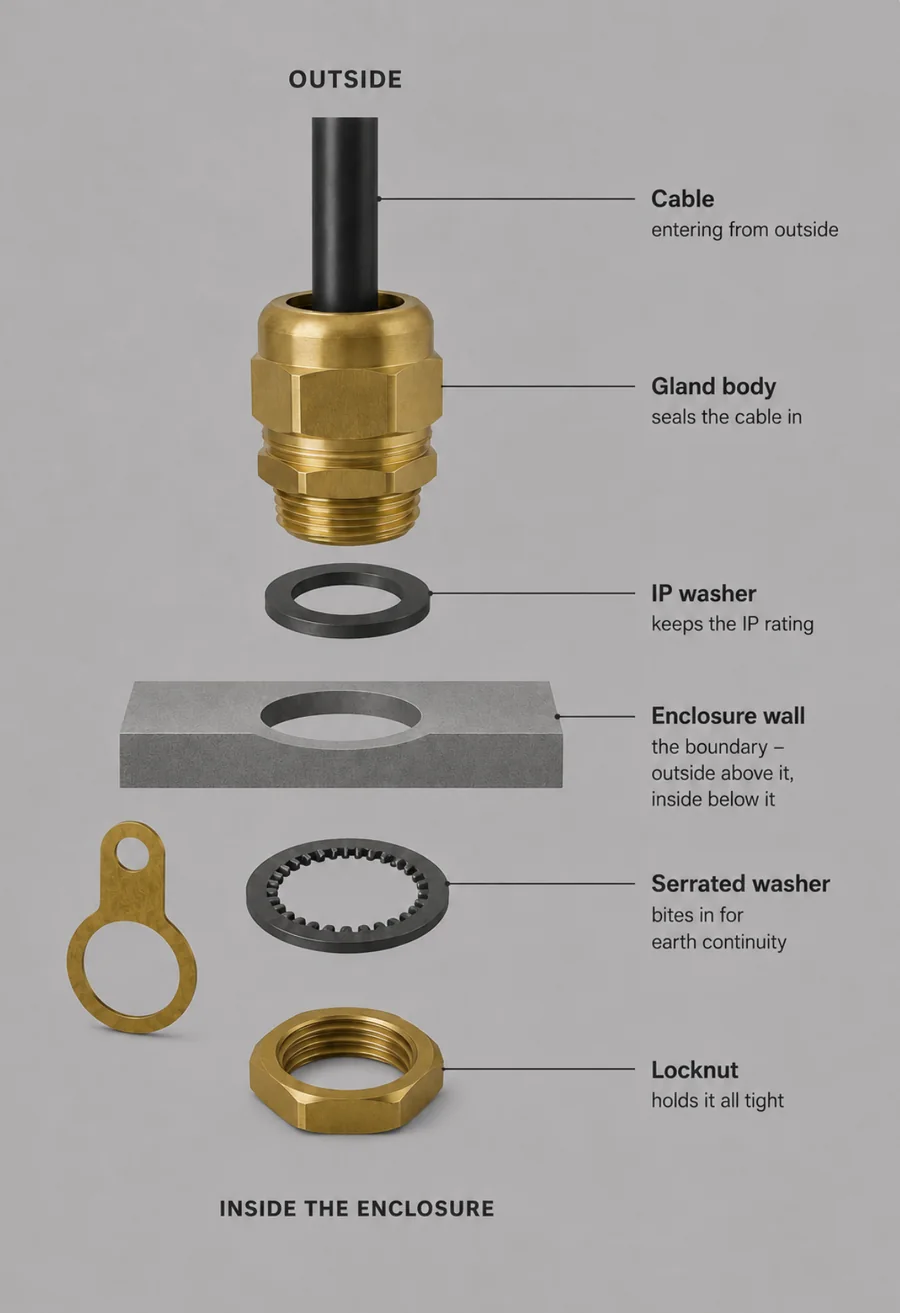

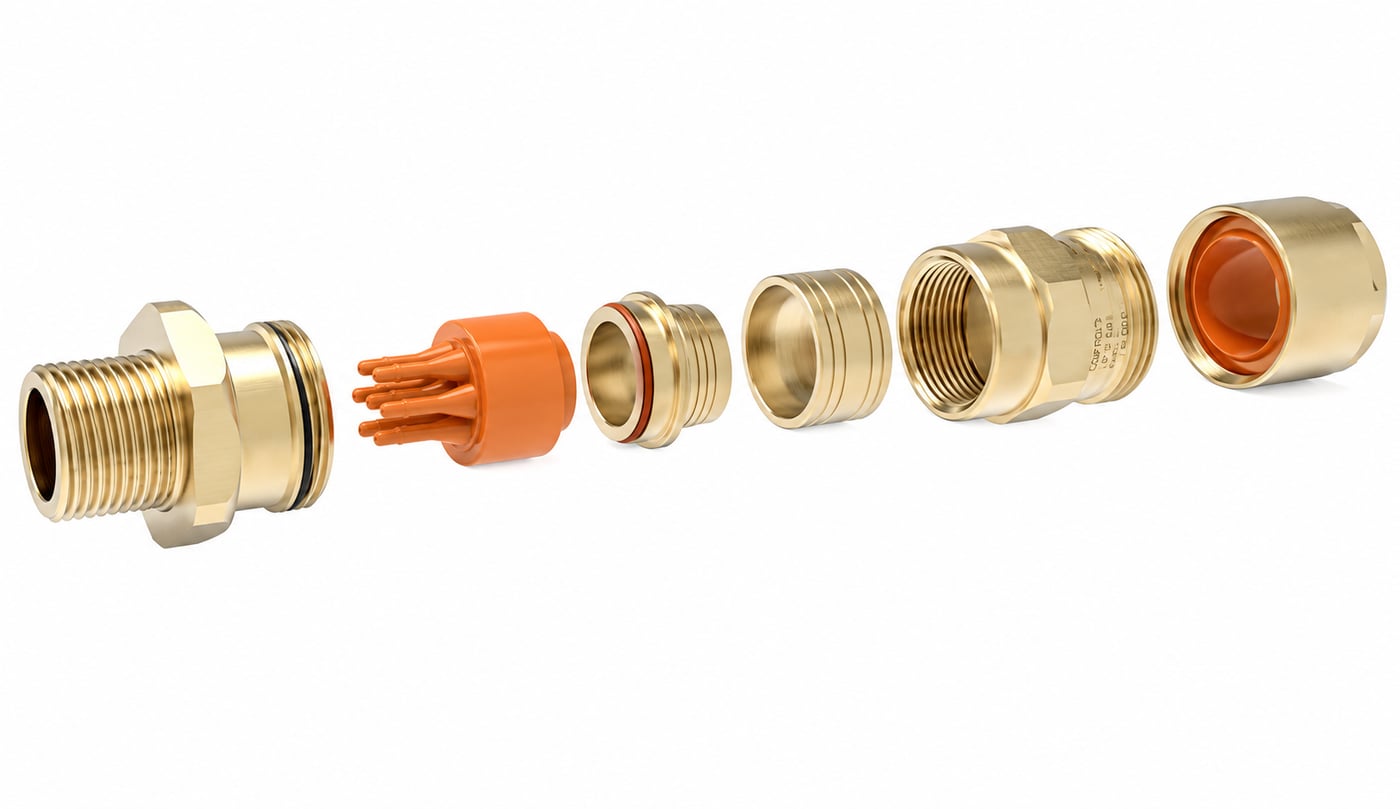

Exploded cable gland assembly from outside (top) to inside the enclosure (bottom): cable, gland body, IP washer, enclosure wall, serrated washer with earth tag, locknut
The order of a cable entry, from the cable in (outside) down to the locknut (inside): gland body, IP washer, the enclosure wall, the serrated washer with its earth tag, and the locknut.
The real glands: official Hawke

On site and in the exam these are real certified products. The Hawke 501/421 is the single-seal gland for unarmoured and braided cable, sealing on the cable outer sheath (certified Ex db eb IIC Gb, plus Ex nR and Ex t, Zone 1 and 2). For armoured (SWA) cable the Hawke 501/453 Universal also clamps and earths the armour. For direct entry into an ignition-capable Ex d IIC or IIB+H2 enclosure you need a Hawke barrier gland (compound filled). A certified Ex gland carries the full three-row marking; if it does not, it is uncertified, which is a recordable fault. Exam

Official Hawke Ex cable gland with deluge seal
The real gland
Hawke cable gland cut away, showing the seal on the cable sheath, the armour clamp and the barrier
Cross-section

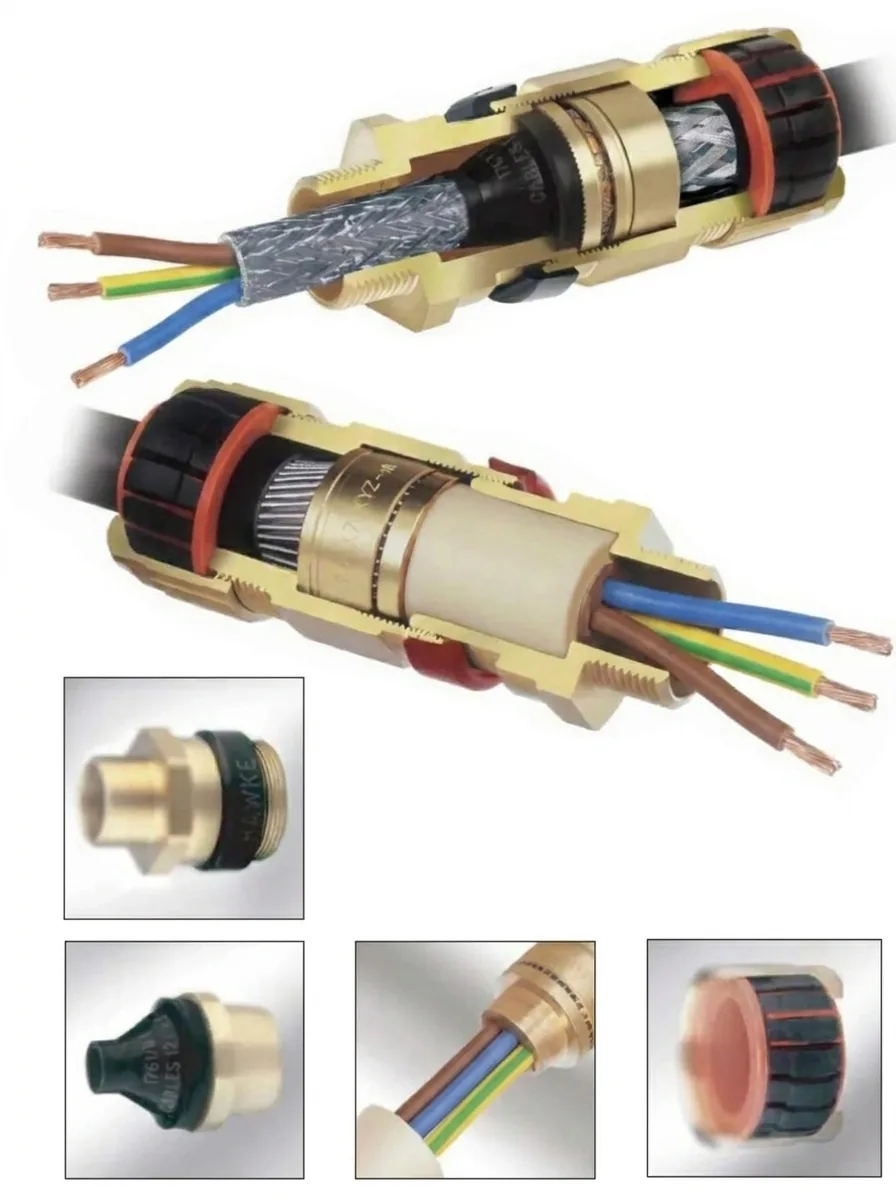

Hawke gland cut away showing the braided and armoured cable clamped inside
On the cable

Tap any image to expand. Tap the cross-section to see every part of the gland named.

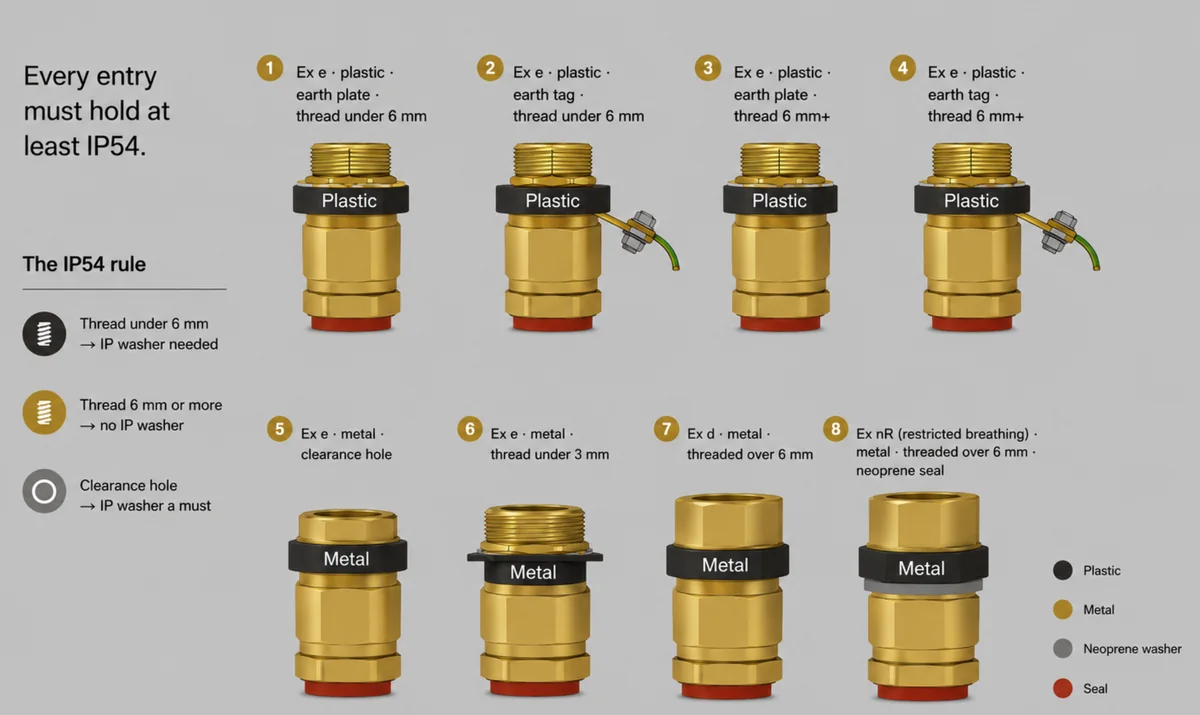

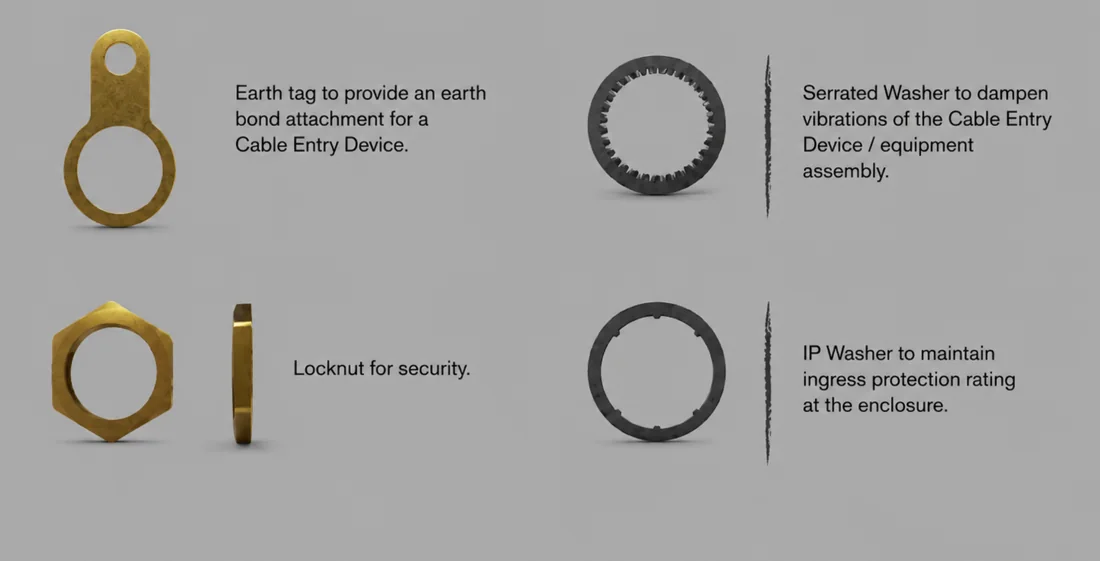

The minimum arrangement depends on the enclosure and the entry:

Enclosure and entryMinimum arrangement
Steel, clearance hole, SWA cableGland, external IP washer, internal serrated washer, locknut
Plastic, clearance hole, no continuity plateGland, earth tag, external IP washer, internal locknut
Threaded entry 6 mm or longerJust the gland

So, do you need an IP washer to hold the minimum IP54? It comes down to the entry:

Cable entryIP washer
Thread under 6 mmYes, required
Thread 6 mm or moreNot needed
Clearance holeYes, a must
Eight cable entry scenarios across plastic and metal enclosures with the IP54 rule
The full picture across plastic and metal enclosures: earth plate or earth tag for continuity, and the thread that decides whether you need an IP washer.
The two rules to remember

An Ex d gland needs at least 5 full threads (6 mm) of engagement, and about 20 mm of inner insulation should show inside the gland. Exam

Ex d Flameproof

Flameproof does not stop the explosion happening. It lets it happen inside a strong enclosure, then contains it and cools the escaping gases through engineered gaps (the flamepaths) so they cannot ignite the atmosphere outside. Containment, not prevention.

The enclosure is solid and robust, built to withstand around 10 bar (150 psi) from an internal blast. Typical materials are cast iron, aluminium alloys, gun metal and stainless steel. Plastics are only allowed where the free internal volume is no more than 10 cm³.

The flamepaths are the joints, flanged, spigot or threaded, where gases escape and cool. The gap is critical: too wide and a flame gets out. Each gas group is defined by its MESG (maximum experimental safe gap), and from that the standard sets the maximum constructional gap allowed for the joint, checked with a feeler gauge, with all cover bolts tool tight. For a small hydrogen (IIC) enclosure that constructional gap is about 0.10 mm, the tightest of all. Solid objects must be kept clear of flamepaths by a minimum distance, which also depends on the gas group.

The use case

Kit that cannot keep gas out, like a motor, a switch or a junction box in a Zone 1 area. Ex d accepts that gas may get inside, and is built so that if it ignites, the enclosure contains the blast and cools whatever escapes through the flamepath.

Cutaway of a flameproof Ex d enclosure: explosion contained inside, hot gas escaping through the flamepath and cooling as it exits
Ex d does not prevent the blast, it contains it. The strong enclosure takes the explosion, then forces the hot gas out through a long, narrow flamepath that cools it below the temperature that would ignite the atmosphere outside.
Pressure piling

If an enclosure is internally subdivided, a first explosion can pre-compress gas in the next compartment so the second blast is far worse, up to about three times the pressure. It is usually caused by unauthorised changes to the internal layout, which is why those changes are banned. This effect is known as pressure piling. Exam

Cable glands must be Ex d certified with a minimum thread engagement of 5 full threads (6 mm). A barrier gland is needed for direct entry into IIC or IIB+H2 enclosures, or where the cable type and internal volume demand it. Unused holes take certified stopping plugs fitted with special tools.

So which gland do you fit? Work it down from the gas group, the cable length and the enclosure volume:

Equipment in IIC or IIB+H₂? Flameproof Barrier Type Gland Connected cable ≥ 0.5 m? Connected cable ≥ 3 m? Enclosure volume ≤ 2 L? Reliable evidence cable meets Annex C? Flameproof Gland No · IIA or IIB Yes · IIC or IIB+H₂ No · <0.5 m No · <3 m Yes · ≥0.5 m No · ≥2 L Yes · <2 L Yes · ≥3 m No · no evidence Yes · evidence
This is how you choose a flameproof (Ex d) gland for direct entry into the enclosure. Start with the gas group: a IIC or IIB+H₂ atmosphere is the strict one. Short cable runs, or any case where the cable cannot be shown to meet Annex C, need a barrier gland; otherwise a standard flameproof gland is fine.

IIC or IIB+H₂: the strict one

CableThenGland
< 3 mn/aBarrier
≥ 3 mmeets Annex CStandard Ex d
≥ 3 mdoes notBarrier

IIA or IIB

CableThenGland
< 0.5 mn/aBarrier
≥ 0.5 mvolume < 2 LStandard Ex d
≥ 0.5 m≥ 2 L, meets Annex CStandard Ex d
≥ 0.5 m≥ 2 L, does notBarrier

To keep ingress protection and stop rust, non-setting, non-combustible grease may be applied to the flamepaths, but not on IIC enclosures. Any adaptor used with a gland must itself be Ex d certified, and an imperial opening is sealed with a certified stopper of matching thread.

MarkingEPLZone
Ex daGa0
Ex dbGb1
Ex dcGc2
What you must never do to flameproof kit

No drilling or tapping except by the manufacturer, no changes to the internal layout, no added gaskets (only like-for-like replacement), and no unauthorised sealants. After any internal work, all bolts go back tool tight and the flamepaths are checked before it goes live. There is no minimum IP rating if none is marked, the protection is in the flamepaths, not the seals. Remember

Ex e Increased Safety

Increased safety takes a normal-looking piece of kit and adds extra measures so that arcs, sparks and excessive temperatures cannot happen in normal service. It prevents the ignition source rather than containing it like Ex d.

The key features: a mechanically strong, impact-tested enclosure, a minimum of IP54, a limited number of terminals, and set creepage and clearance distances with at least 6 mm between live terminals. Since 2008 the glands must be certified (Ex e, de or denR); before that an uncertified gland was fine if it was IP rated and impact tested.

Two live terminals on an insulation block: clearance is the straight path through air, creepage the longer path along the surface, 6 mm minimum

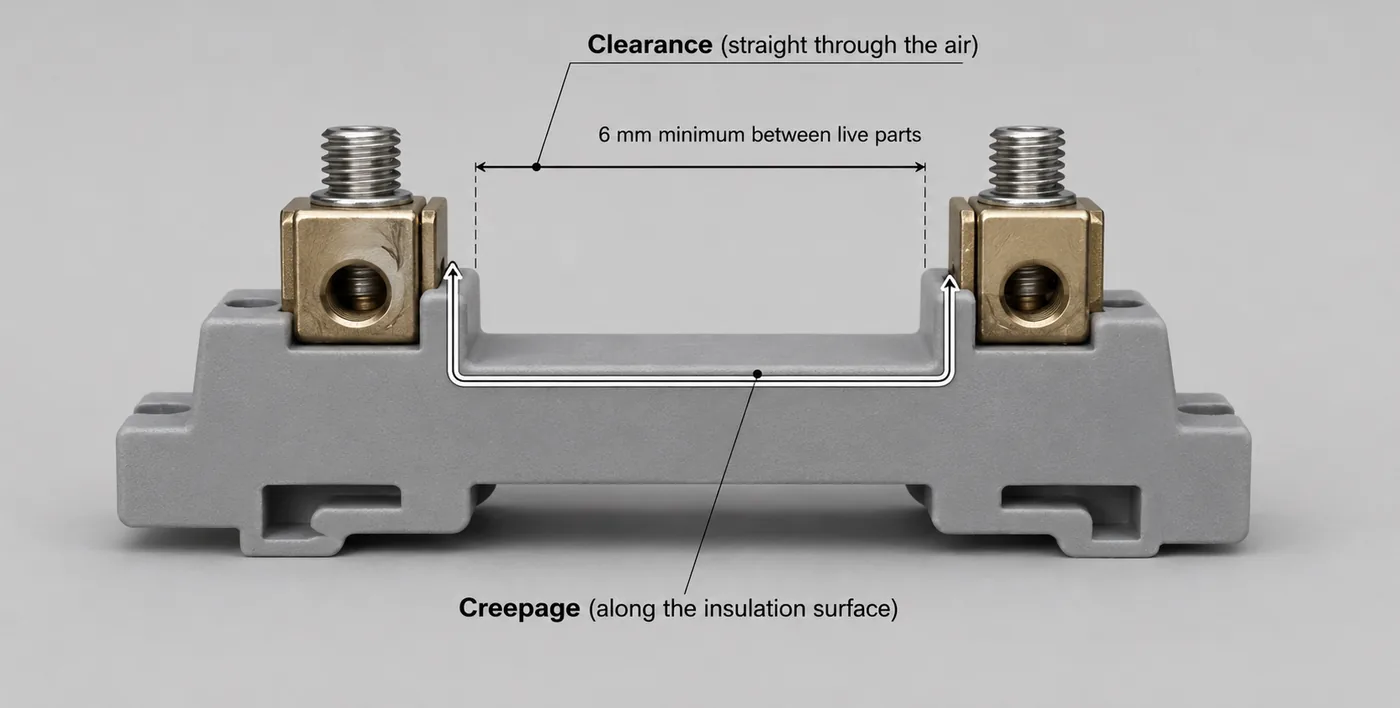

Two distances keep live parts apart: clearance, the shortest path straight through the air, and creepage, the longer path along the insulation surface. The minimum between live terminals is 6 mm.

At terminations, no more than 1 mm of bare conductor should show, only one conductor per terminal side unless the certificate says otherwise, and two different-sized conductors need a single compression ferrule to share a terminal.

Ex e enclosures use the gland arrangements covered above. Every cable entry must keep the minimum IP54, and from 2008 unused entries are closed with certified stopper plugs. An Ex d motor fitted with an Ex e terminal box takes an Ex e gland on its SWA cable.

Ex e motors and the tE time

An Ex e motor is protected by its tE time: the time the starting current takes to heat a stalled winding from its normal running temperature up to the limiting temperature. The overload must trip within that time, and tE is never less than 5 seconds. Exam

Markings: Ex eb suits Zone 1, Ex ec suits Zone 2.

Ex n Reduced Risk

Reduced risk means that in normal operation, and certain specified abnormal conditions, the equipment cannot ignite the atmosphere around it. It has no fault tolerance, so it is Zone 2 only (EPL Gc). It is an older concept, gradually absorbed into other types and no longer in the current 60079 series, but it still turns up on installed kit. Minimum IP54 where there are bare live parts.

Sub-typeWhat it is, and what it became
Ex nANon-sparking, now Ex ec
Ex nCSealed or hermetic devices
Ex nRRestricted breathing
Ex nLEnergy limited, now Ex ic

Ex nR is restricted breathing: sealed so an incendive mixture cannot get in. A gland fitting an Ex n enclosure must be certified to at least IEC 60079-0 (the modern triple-certified d, e and t glands are common). Ex nL can be used in an EPL Gc intrinsically safe circuit if its electrical parameters match.

A plain "Ex N" marking is the old standard and is not certified to current CENELEC or IEC standards.

Ex i Intrinsic Safety

Intrinsic safety works by limiting the electrical energy in the hazardous area to below what it takes to ignite the atmosphere. It is the only concept that allows live working without a gas-free certificate, and the only one that can go into Zone 0.

SAFE AREA HAZARDOUS AREA Control & power Zener barrier Field device sensor / transmitter IS earth
Intrinsic safety limits the energy, not the explosion. The Zener barrier in the safe area caps the voltage and current that can ever reach the hazardous area, so even a short circuit or a broken wire cannot release enough energy to ignite the atmosphere. It is the only concept safe for live working and the only one allowed in Zone 0. A Zener barrier relies on its dedicated IS earth; a galvanic isolator does the same job without one.
LevelStays safe withZone
Ex iaTwo faults0
Ex ibOne fault1
Ex icNormal operation2

Intrinsic safety is certified as a complete loop, not as single pieces of kit: the barrier, the cable and the field device are assessed together, documented in a Descriptive System Document, and every part has to be justified. The energy is limited by a barrier in the safe area. A zener (shunt diode) barrier needs a dedicated high-integrity IS earth of under 1 ohm, minimum 4 mm². A galvanic isolator does not need a dedicated earth, which is why it is more common today. The barrier (the associated apparatus) holds both IS and non-IS circuits, with a maximum Um of 250V at the non-IS terminals.

Zener (shunt diode) barrier SAFE HAZARDOUS Zener IS earth required
A Zener (shunt diode) barrier dumps surplus energy to earth, so it needs a dedicated high-integrity IS earth.

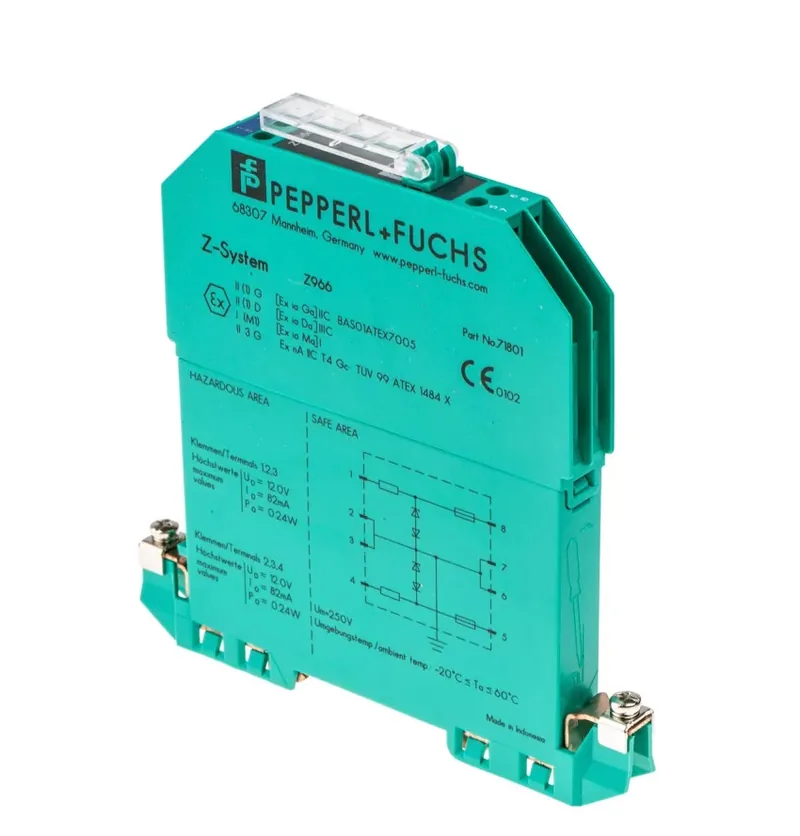

Pepperl and Fuchs Z-System zener barrier, front
P+F Z-System (zener)
Inside the Pepperl and Fuchs zener barrier, schematic
Inside the zener
Galvanic isolator SAFE HAZARDOUS transformer isolation No IS earth needed
A galvanic isolator separates the two sides with a transformer, so it needs no IS earth. More common today.

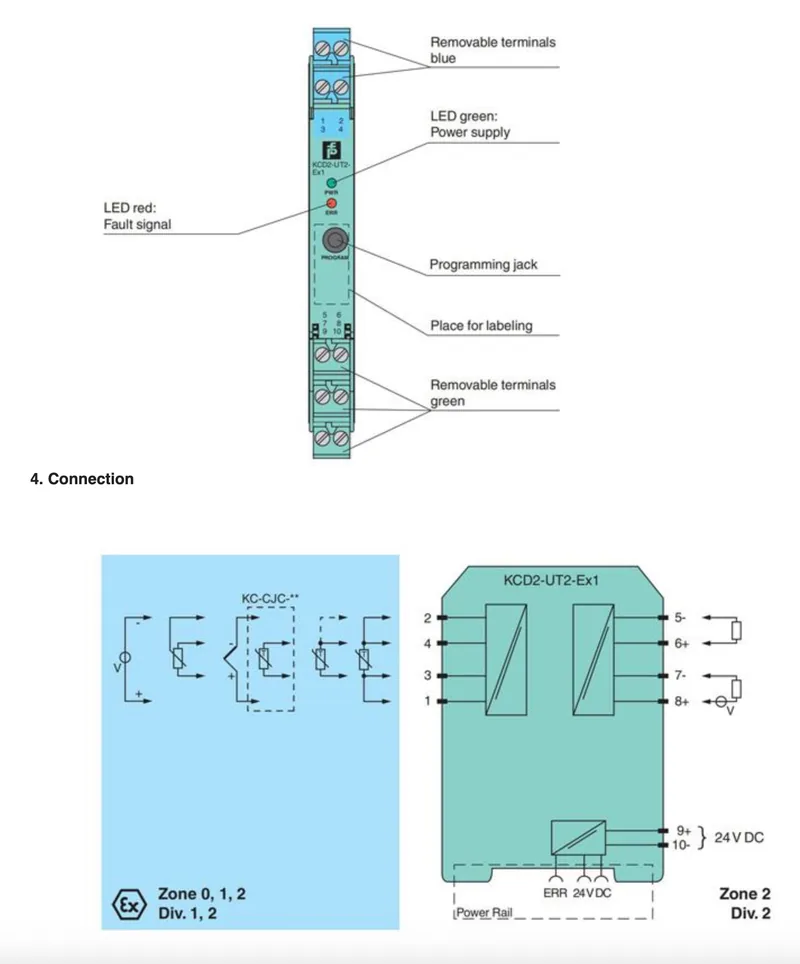

Galvanic isolator connection diagram showing the transformer isolation
Inside the galvanic

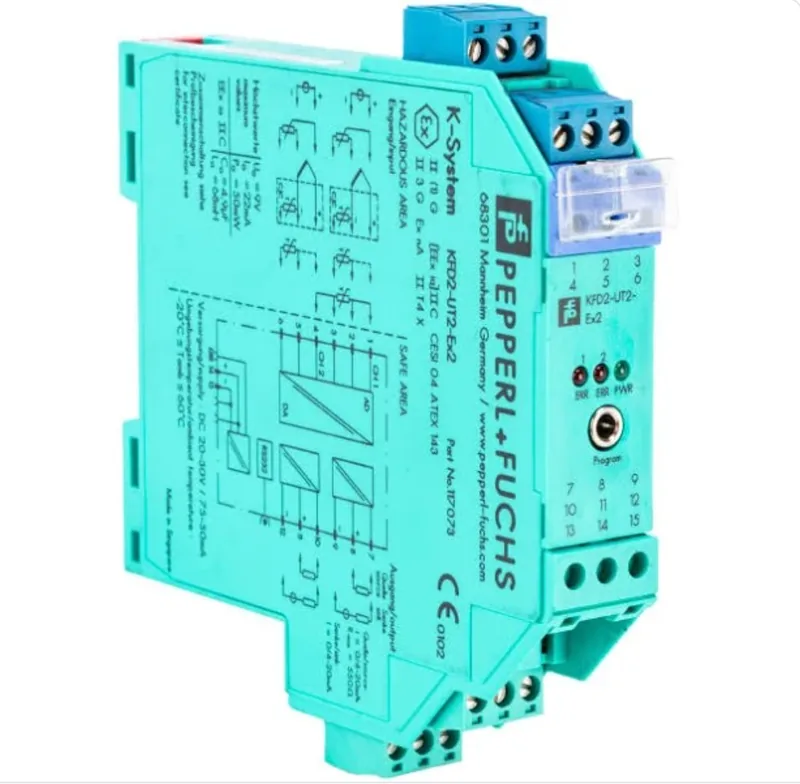

Pepperl and Fuchs K-System galvanic isolator, front
P+F K-System (galvanic)

Both barriers limit the energy reaching the hazardous area. The Z-System is a zener (shunt-diode) barrier, the K-System a galvanic isolator. Tap any panel to expand.

A zener barrier uses three diodes so it stays safe with two faults (level ia). The marking [Ex ia] in brackets means associated apparatus, the safe-area equipment that feeds the IS circuit. Simple apparatus, a diode, thermocouple, switch or resistor, needs no certification. Enclosures for IS circuits are a minimum of IP2X; an uncertified metallic junction box must avoid light metal and keep 3 mm clearance to earth and 6 mm between separate circuits, while a plastic box in a Zone 1 area uses an Ex eb enclosure. Unused cores are terminated in unearthed terminals.

IS install rules worth knowing

Minimum cable strand 0.1 mm; insulation tested at 500V AC or 700V DC; 50 mm between IS and non-IS terminations; screens earthed at one point only (per the loop diagram); preferred cable colour is light blue. Simple apparatus (a diode, a thermocouple, a switch) needs no certification. Exam

Ex p Pressurisation

Pressurisation keeps the hazardous gas out by holding a protective gas inside the enclosure at a slight overpressure. Used on control rooms, analyser cabinets and large machines. The safe gas (air, or an inert gas such as nitrogen) is drawn from the safe area, and the enclosure is purged before it is energised. If it exhausts into a hazardous area, a spark arrester is fitted. If an inert gas is used, warning beacons and signs are required. The pressure relief valve is set to no more than 75% of the maximum overpressure.

The use case

Big or complex kit you cannot make flameproof: control rooms, analyser cabinets, large motors and panels. Instead of surviving a blast, you stop one ever happening by holding clean air or inert gas inside at a slight overpressure, so flammable gas can never get in.

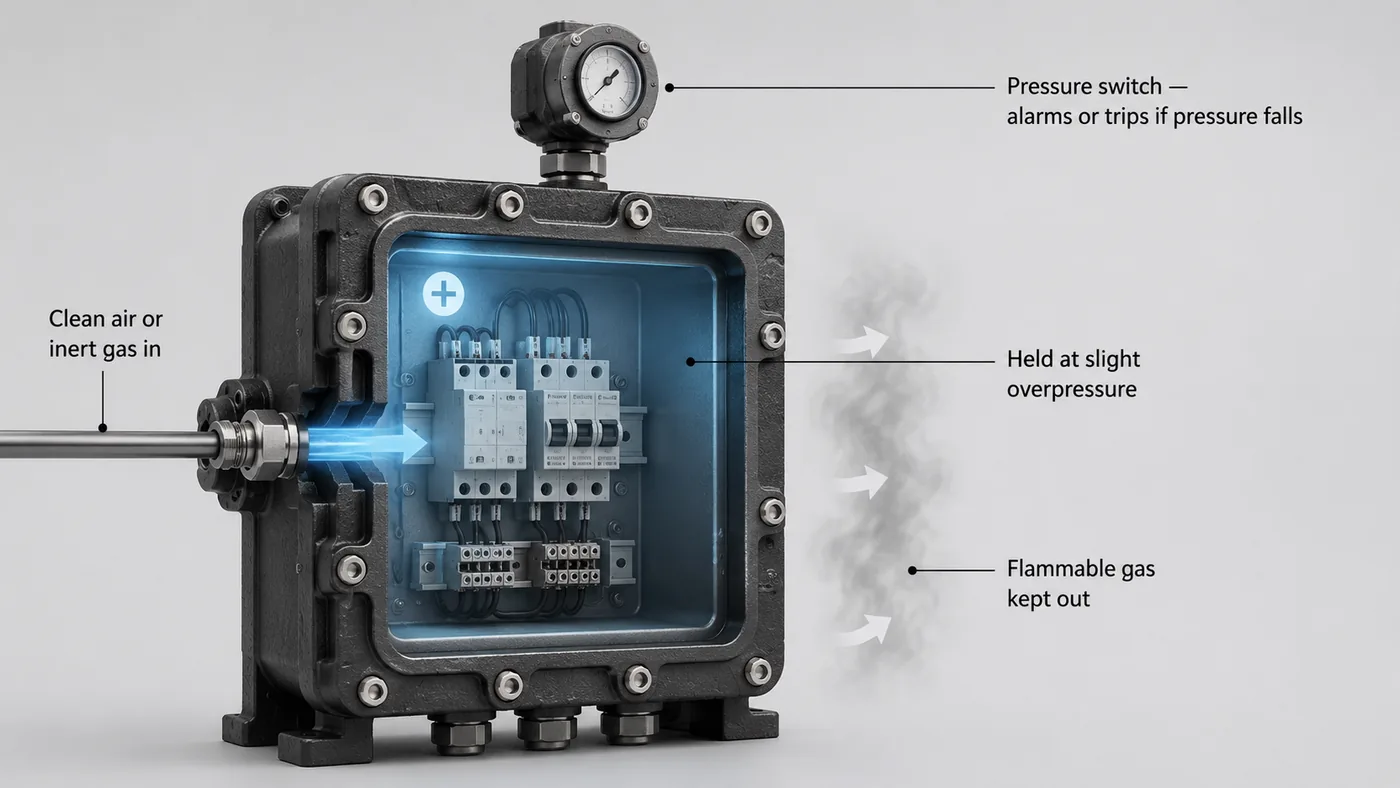

Cutaway of an Ex p pressurised enclosure: clean air or inert gas fed in, held at slight overpressure, pressure switch on top, flammable gas kept out
Ex p stops a blast ever happening. The enclosure is purged, then held at a slight overpressure with clean air or inert gas, so flammable gas cannot get in. A pressure switch watches it: if the pressure falls, it alarms and, for Ex px, cuts the supply.
TypeReduces the inside toSuits
Ex pxNon-hazardousZone 1
Ex pyZone 2Zone 1
Ex pzZone 2Zone 2

The current standard adds the EPL as a suffix: Ex pxb and Ex pyb for a Zone 1 (Gb) area, Ex pzc for Zone 2 (Gc). If the kit inside is not ignition-capable and already suits the zone, no pressurisation is needed.

When pressure is lost

If the enclosure holds ignition-capable equipment, an alarm sounds and, for Ex px, the supply is automatically switched off. If it holds only non-ignition-capable equipment, an alarm and prompt action to restore pressure is enough. If the kit already suits the zone on its own, no pressurisation is needed. Exam

Ex o, q, m, s and op (the rest)

The remaining concepts each keep the gas and the spark apart in their own way:

MarkHow it protectsStandard
Ex oOil immersion: parts sit in oil so the atmosphere above cannot be ignited60079-6
Ex qPowder filled: fine powder packs around the parts and quenches any arc60079-5
Ex mEncapsulation: parts are sealed in a solid compound60079-18
Ex opOptical radiation: keeps optical or laser energy too low to ignite (torches, fibre)60079-28
Ex sSpecial: tested and proven case by case where it fits no standard concept60079-33

Combined methods

Kit often uses more than one concept, and the letters then appear in alphabetical order. A flameproof motor with an increased safety terminal box is marked Ex de. The classic exam trap: Ex de is a flameproof (d) body with an increased safety (e) terminal box, not the other way round.

That completes the protection concepts. Installation (Chapter 08) and Inspection (Chapter 09) come next.

You can now
  • Explain how Ex d, e, n, i and p each prevent ignition
  • Pick the right gland, and know when a barrier gland is needed
  • Read a combined marking like Ex de the right way round
Next: Installation →

Doing it right. 60079-14 is the standard for design, selection and installation, and its whole aim is to stop the installation itself ever becoming the ignition source.

In this chapter
  • How to install to 60079-14 so the work itself never becomes the ignition source
  • Earthing, bonding and the gland and cable rules the assessors watch for
  • What the Ex01 and Ex03 practicals involve, using the concepts from Chapter 07
By the end you'll know what a correct install looks like and how the practicals run.

Cables and terminations

Cables for fixed non-IS equipment must be thermoplastic, thermosetting or elastomeric sheathed, or mineral insulated metal sheathed (MICC). Runs through a hazardous area should be continuous where possible. Aluminium conductors, if used, must be at least 16 mm². Fine and multi-stranded conductors must be protected against the strands separating, using lugs or core-end ferrules, never by soldering alone.

When taking non-IS equipment out of service, at least one end of each unused core must be connected to earth.

Cable entry and glands

Choosing a gland comes down to the cable type and the enclosure. An E1W gland is for steel wire armour (SWA). An ignition-capable flameproof enclosure may need a barrier gland, depending on the gas group, cable length and internal volume. On a gland certificate, a "U" means a component and an "X" means specific conditions of use, for example fixed equipment only. As a rough guide, around 20 mm of inner insulation should be visible inside the gland.

Earthing and bonding

Earthing gives fault current a fast path to clear the protective device, and bonds all metalwork to the same potential so nothing can arc across. A loose or high-resistance earth is itself an ignition source.

The earthing rule that comes up

TN-C and TN-C-S (PME) systems are not suitable for explosive atmospheres, because the neutral also acts as the earth. Bonding conductors are a minimum of 6 mm² (4 mm² for supplementary bonding). Exam

Ex enclosures have an internal earth terminal and an external earth tag for supplementary bonding. Because the enclosure is painted or anodised, a serrated (star) washer goes under the tag to bite through the coating to bare metal, otherwise the joint is high-resistance and will not clear a fault. On armoured cable, the armour is earthed by the gland cone (the olive), so a slack or wrongly assembled gland is a recordable fault.

Intrinsically safe earthing

An IS circuit using a Zener barrier must be earthed at one point only, back to the system star point. More than one earth creates a loop that can circulate current and defeat the energy limiting. The IS earth is run as 1 × 4 mm² or 2 × 2.5 mm² for reliability, and IS wiring is kept at least 50 mm away from non-IS wiring. Galvanic isolators do the same job without a dedicated IS earth. Exam

If light metals not listed in 60079-0 are used in construction, an ignition hazard assessment is needed to prove it is safe.

On the day: the Ex01 and Ex03 installs

Here is what the two install assessments actually involve, so nothing on the day is a surprise. Centres vary slightly, but the shape is the same and the assessors take you through the hands-on work. If you are not from an electrical background, do not let it worry you.

Ex01 install · Ex d, e, n, p
  • Install flameproof and increased-safety enclosures and terminate the cables in
  • Mostly glanding, SWA or braided cable
  • Hawke glands
  • Your documentation will show you, your specific spec and how your booth is correctly wired, so make sure to follow this correctly
Ex03 install · Ex i (IS)
  • Install and earth intrinsically-safe equipment
  • Braided cable
  • Barrier gland: putty type forming a cone that seals tight, or a newer MDS gland (multiple diaphragm seal)
  • Hawke glands
  • Sleeve the screen correctly
  • Hellermann sleeving where needed so the screen cannot slip off
  • Your documentation will show you, your specific spec and how your booth is correctly wired, so make sure to follow this correctly

What you are assessed on. Method, not finish. You are marked on following your documentation, using the correct glands, and installing them properly and safely. Before any work: permit, isolate, prove dead, and confirm the area is gas-free. Neatness and cable-tying are not scored, so keep the standard up but do not lose time chasing a tidy job.

Safe isolation and the permit to work

Before you touch anything, on any unit, you make it safe. It is assessed on every practical, and it is the same sequence you would follow on a live site. Your assessor will run you through this.

  1. Permit to work. You do not start until the job is authorised in writing.
  2. Isolate and lock off. Break every live conductor, the neutral included, at a double-pole isolator. Lock it off, ideally with two locks, yours and the assessor's, and hang a warning label.
  3. Prove dead, prove-test-prove. Prove your approved tester on a known live source, test the circuit is dead, then prove the tester again. Only then is it dead.
  4. Gas-free certificate. Before any live testing or hot work, the area is tested and certified clear of a flammable atmosphere.
  5. Work, then de-isolate and cancel. When you are done, locks and labels off, and close out the permit.

Intrinsic safety cable

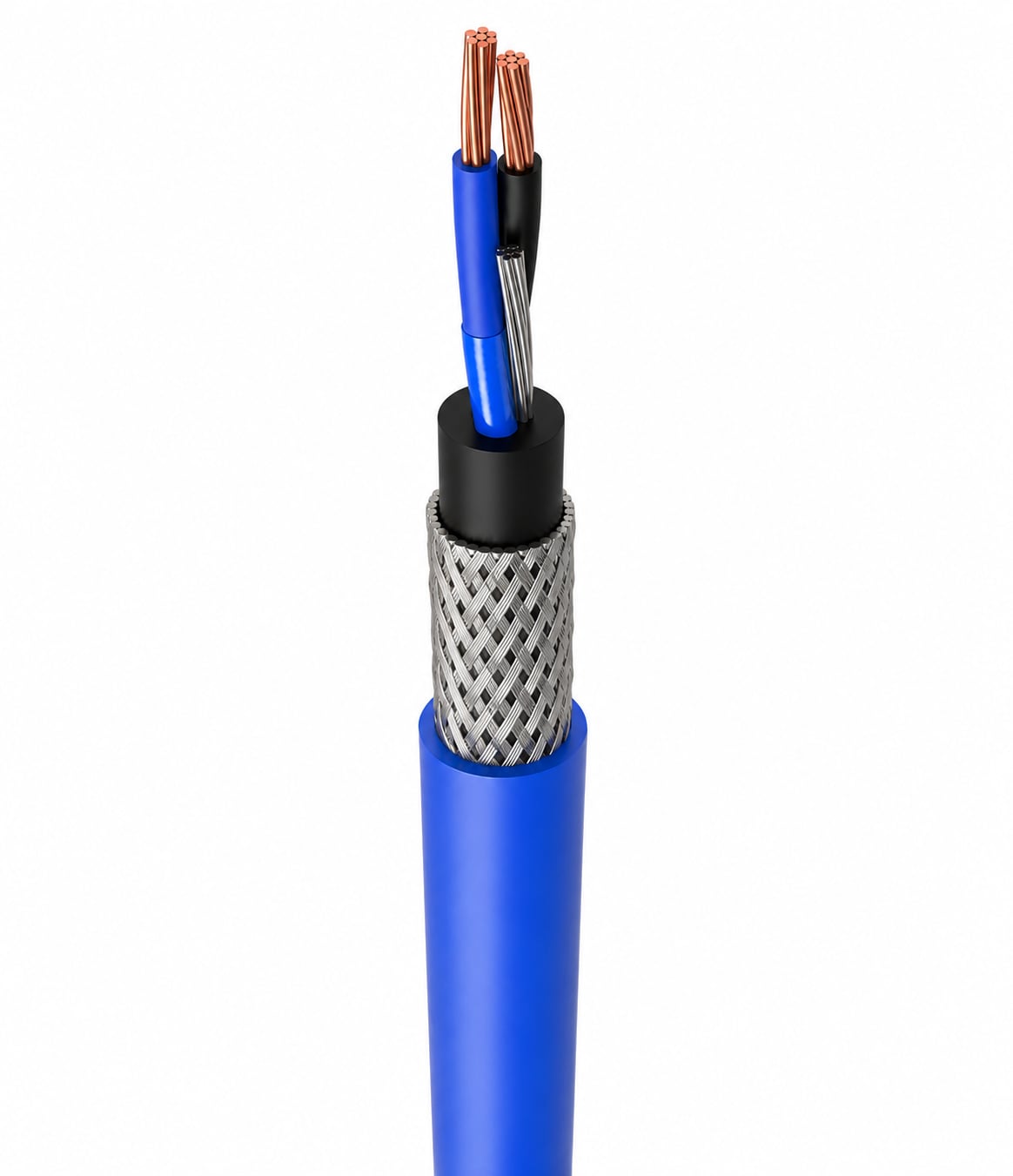

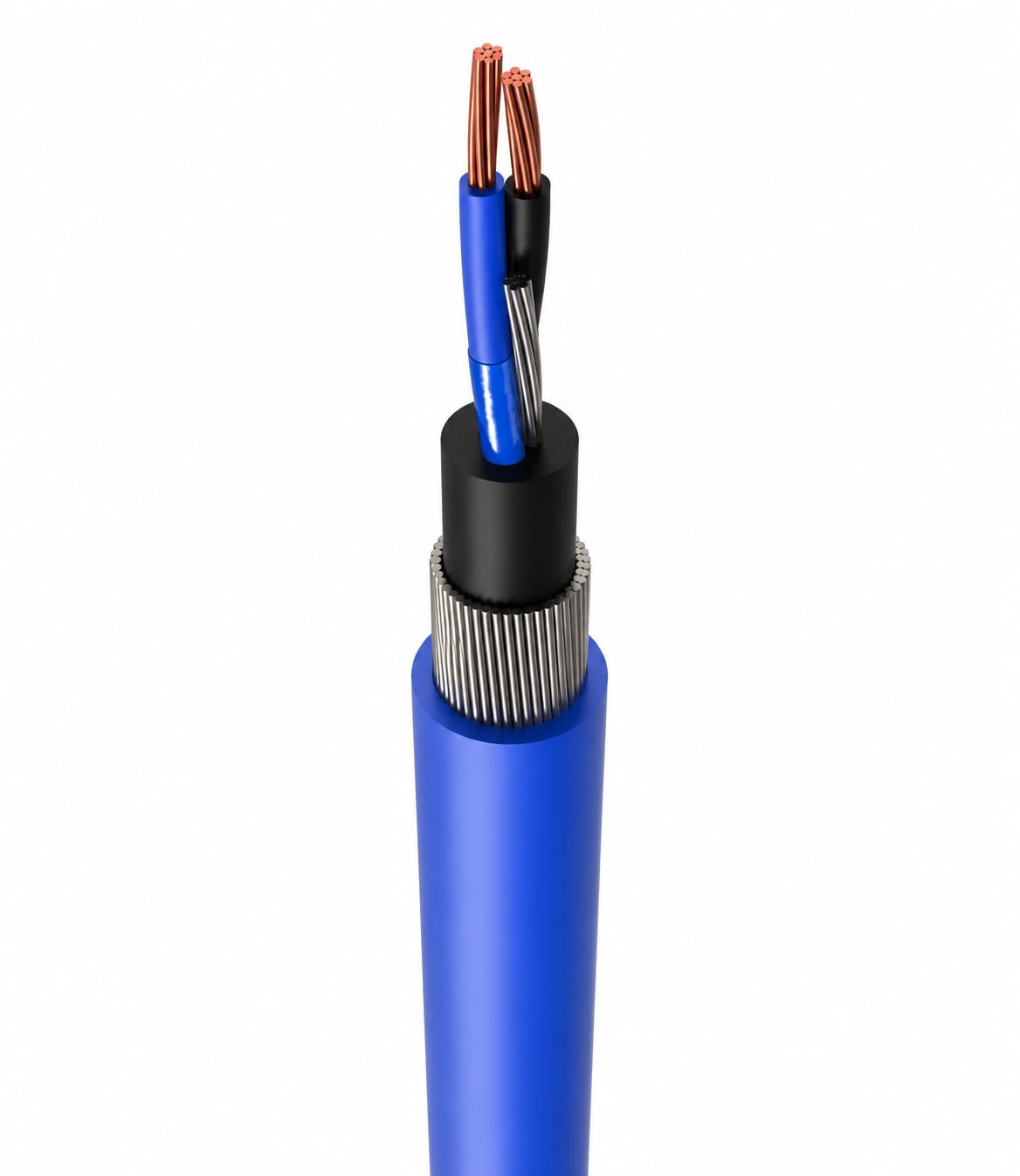

The blue one. This is intrinsically safe (IS) cable, and it is what you install and inspect on the IS units, Ex03 and Ex04. The blue sheath is deliberate, it flags the cable as IS so it is never mistaken for power and is always kept segregated. It comes in three forms, tap through them.

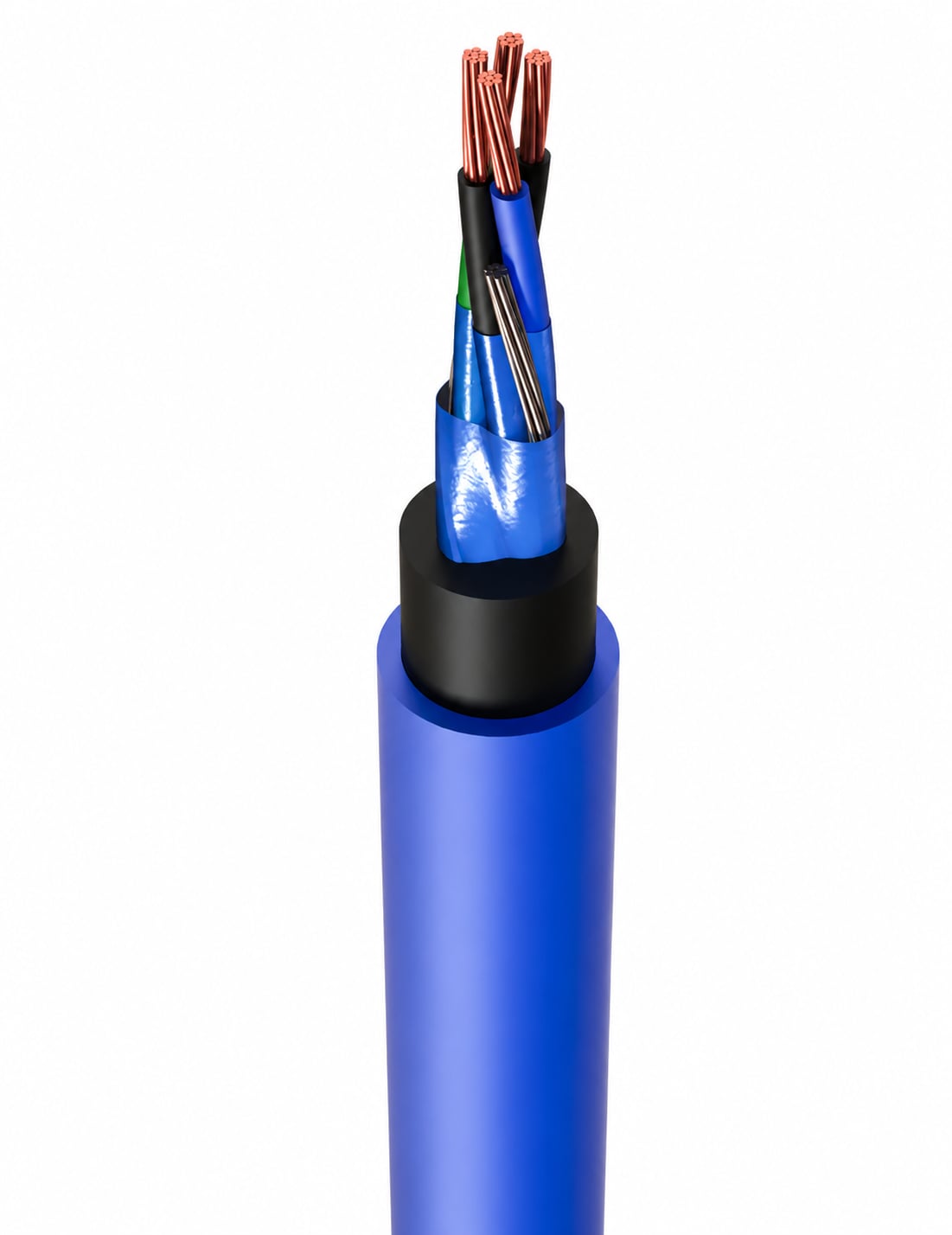

Unarmoured intrinsically safe cable stripped back to its layers

Unarmoured. Insulated and sheathed, with no armour. Protection comes from what it is run in, conduit or trunking, rather than built into the cable.

Barrier glands

Throughout the week you will be introduced to barrier glands. The two types you will most likely be assessed on are compound, better known as putty, and the MDS.

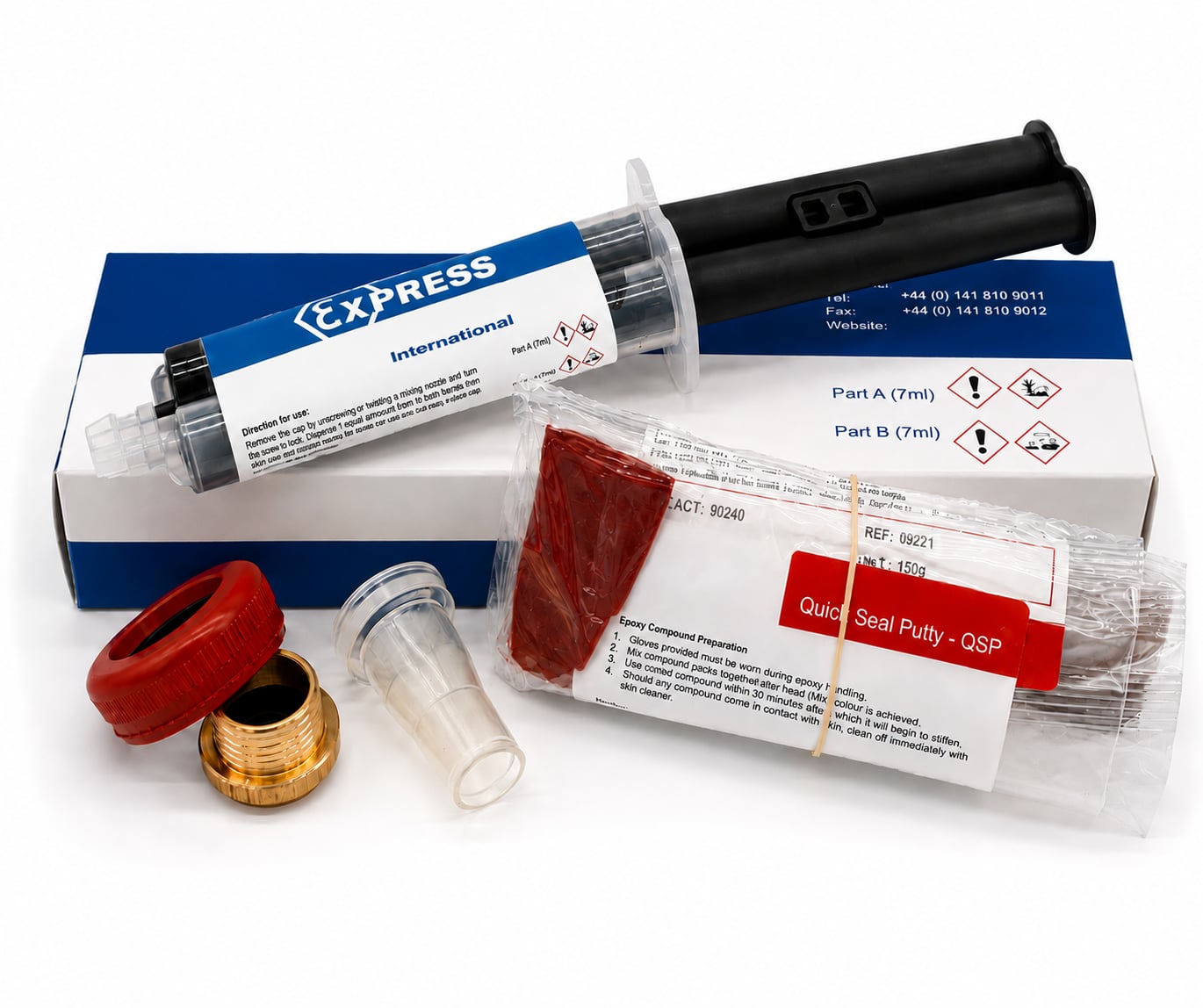

Compound putty barrier gland kit

Compound, the putty. A two-part epoxy compound you knead together and pack around the cores by hand, filling every void to form the seal. The traditional way, and still common.

You can now
  • Choose the right cable, gland and termination for the job
  • Explain safe earthing and bonding, and why PME is not allowed
  • Walk into the Ex01 and Ex03 installs knowing what is marked
Next: Inspection →

Equipment only stays certified if it is maintained. 60079-17 sets out how to inspect it, at what grade, and how often.

In this chapter
  • How equipment is inspected to 60079-17: the three grades and the three types
  • How faults are coded and recorded, the way you will do it in Ex02 and Ex04
  • How this closes the loop on Chapter 08: what you install, you then keep safe
By the end you'll know how to inspect by grade, on schedule, and record what you find.

The three grades: how you inspect

GradeWhat it coversExample fault
VisualDefects seen by eye, no tools or access equipmentMissing bolt, damaged enclosure
CloseAs visual, plus access equipment and some tools; enclosure not openedLoose bolt, uncertified gland
DetailedAs close, plus opening the enclosure and using tools or test gearLoose terminations

The three types: when you inspect

TypeWhenGrade
InitialBefore equipment is brought into service (handover)Detailed
PeriodicRoutine, interval not more than 3 yearsVisual or Close
SampleTo support or adjust the periodic frequencyAny

Portable and personal equipment: checked visually by the user before each use, a close inspection at least every 12 months, and a detailed inspection every 6 months for enclosures opened often, such as battery housings.

Recording faults

Faults are recorded against codes: A general, B installation, C environment. The schedules split into tables: Table 1 for Ex d, e and n, Table 2 for Ex i, Table 3 for Ex p and Table 4 for Ex o.

On site, every certified item is logged in the Ex Register, the master list of what is installed, its certificates and its inspection history, so an auditor can see the whole picture. Responsibility runs in a chain: the manufacturer certifies the equipment, the installer fits it correctly, and the site operator keeps it maintained.

How the inspections work

The inspections are where most marks are won and lost, and they reward a calm, methodical approach. Treat it exactly like a real site inspection, because that is what it is.

Read your documentation

Everything you need is right in front of you, and it is not there to trip you up. It is there to make you slow down and pay close attention, exactly as you would on a real job. Read it, follow it, and work it in order.

Example documentation

On all four of your assessments you are handed documentation, including diagrams like the examples below, that you work and inspect against in your booth. You may be checking your equipment is the correct type, in the correct zone, and free of faults, or making sure you are wiring correctly on the practical assessments. Take your time, and always follow your documentation.

EX02 · Ex d, e, n

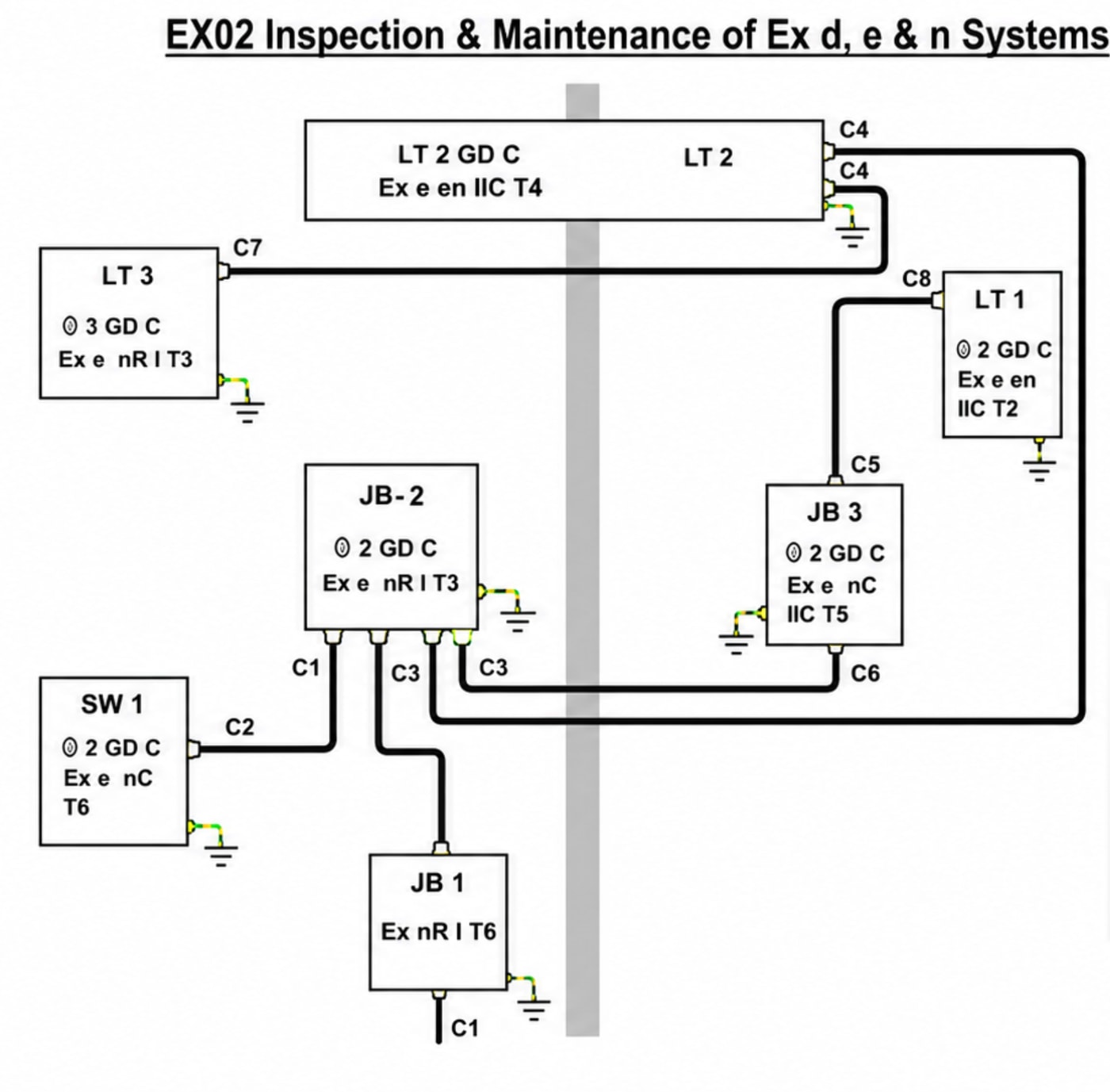

EXAMPLEExample EX02 drawing

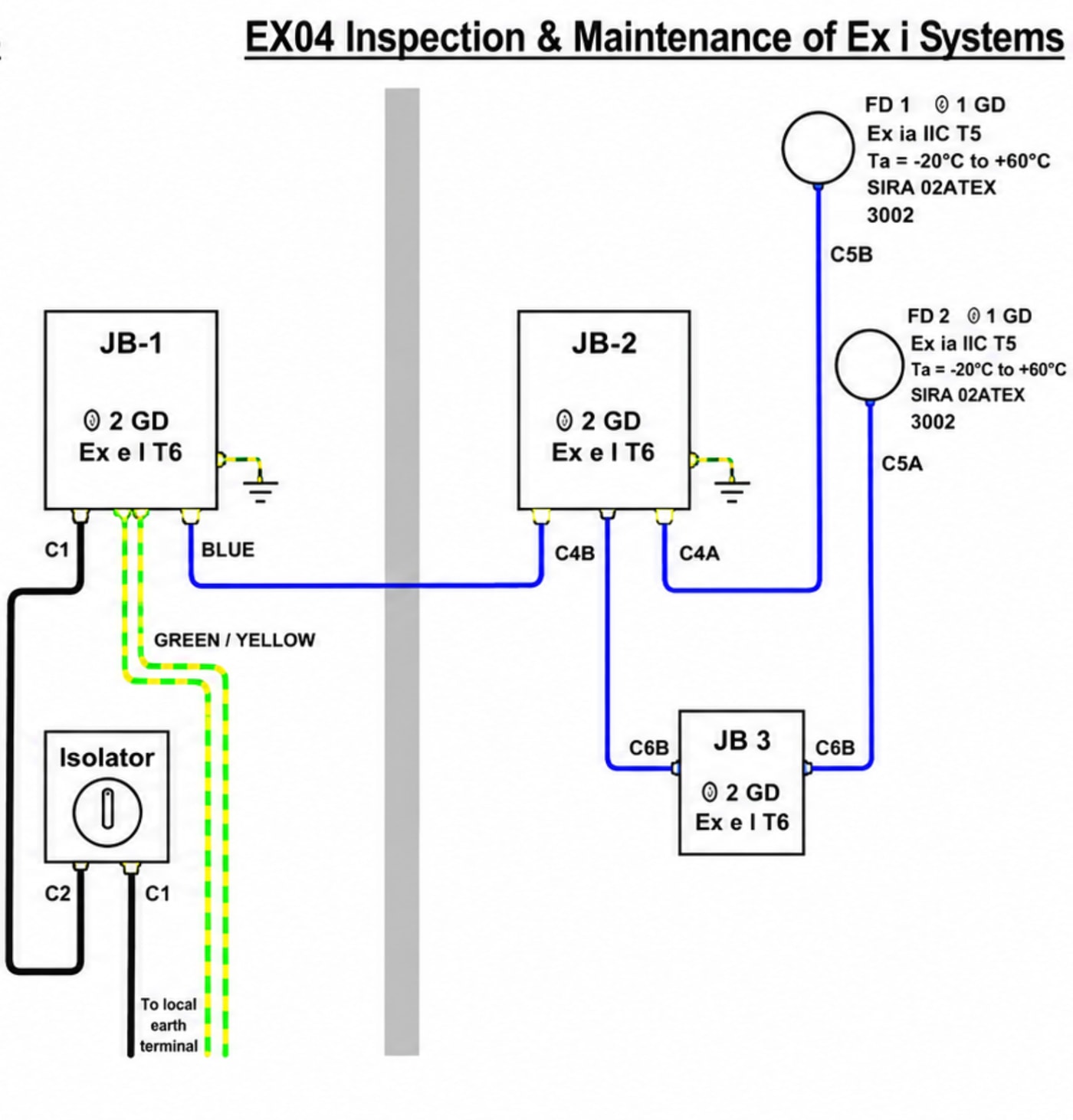

EX04 · Ex i
EXAMPLEExample EX04 drawing

You are in your own booth, with a rig that has faults built into it. Here is exactly how it runs:

  1. Isolate the booth first. Before you touch anything, make it safe. Every single time.
  2. Work in three passes, in this order: Visual, then Close, then Detailed.
    • Visual what you can see, no tools
    • Close opening covers and using access gear, nothing taken apart
    • Detailed opening it up with tools and test gear, de-energised
  3. Log each fault as you find it. Write its code (the check it fails) and the grade you found it at, straight onto the sheet, exactly like the example below.
  4. One line at a time. Work every item on the schedule in order. Methodical beats fast, and you miss nothing.
EXAMPLE
ExREADY 600EXAMPLE-017How you record what you find · practice example

This is what you actually do. You inspect the rig, and for every fault you find you record three things: which check it fails (the code), what is wrong, and the grade you were on when you spotted it. Here is what a filled-in sheet looks like.

CodeWhat you foundVCD
A1Equipment fitted in the wrong zone
A11Cable gland not certified
A11Missing stopper
A13Scored flamepath, found on opening up
B2Damaged cable sheath
B12Obstruction by a flameproof flanged joint
How to read it

The code is where the fault lives on the schedule: A the equipment, B the installation, C the environment, and the number is the exact check. The tick under V, C or D shows how deep you were looking when you found it: Visual, Close or Detailed. That is the whole job: find it, name it, grade it.

Use your documentation

You are handed the documentation: the drawings, the equipment schedule and the inspection sheet. Read it slowly, line by line, and work in order. Do not rush.

Match each fault to the schedule

When something is wrong, find the check it fails and record it against that item. Every fault has a home on the sheet.

Check it against the drawings

Is the right equipment in the right area? Is it the right type and rating for the zone?

Check the detail

Correct glands, correct crimps, correct stoppers, tight connections, no damage, correct labels.

Safety first

This is equipment that keeps people alive in a hazardous area. Ask yourself: would I sign this off as safe? If not, it is a fault.

Faults that come up

Every bay is rigged differently, so the exact faults change, but they are drawn from the same list. These are the ones that show up again and again, learn to spot them and nothing on the day is a surprise. And never try to copy the person next to you, every booth is rigged differently.

EX02 Inspection (standard Ex d, e, n) · potential faults you may face on the day

Visual
  • Wrong-zone equipment
  • Missing or incorrect bolts
  • Damaged cable sheath
  • Missing or incorrect stopper
  • Stopper fitted via an adaptor
  • Missing cable ID
  • Uncertified or incorrect gland
  • Flamepath obstruction (flange joints)
  • Enclosure damage
Close
  • Loose bolts or glands
  • Wrong gas group
  • Wrong temperature class
  • Missing restricted-breathing washer (Ex nR)
  • Non-barrier gland on Ex d
Detailed
  • Damaged flamepath
  • Gasket fitted in the flamepath
  • Missing or damaged gaskets
  • Loose connections
  • Exposed conductor over 1 mm
  • Uncertified or damaged terminals
  • Wrong lamp wattage

EX04 Inspection (intrinsically safe, Ex i) · potential faults you may face on the day

Visual
  • Missing or damaged IS labels
  • Incorrect IS earth size (should be 1×4 mm² or 2×2.5 mm²)
  • Missing stoppers
  • Incorrect IP washers
  • Earth flying leads missing
  • Wrong-zone equipment
  • IS and non-IS wiring under 50 mm apart
Close
  • Serial numbers and brands do not match the drawings
  • Loose glands
  • Loose bolts
Detailed
  • Barrier box wired incorrectly
  • Wrong or crossed barrier terminals
  • Barrier fitted upside-down
  • Loose IS connections
  • Poor earth to the Zener or galvanic isolator
  • IS cables tied to power
  • Segregation under 50 mm
Ex i (Ex04): the specifics that catch people

The intrinsically safe side has its own rules. The IS earth must be 1 x 4 mm² or 2 x 2.5 mm². IS and non-IS wiring must be segregated by at least 50 mm. The Zener barrier or galvanic isolator must be the right way up, correctly wired and well earthed. A non-barrier gland on an Ex d enclosure, or a barrier wired the wrong way, is a classic planted fault. Exam

You can now
  • Tell the visual, close and detailed grades apart
  • Match initial, periodic and sample inspections to when they are done
  • Record a fault by its code and the grade you found it at
Next: Exam Prep →

Across the week you sit five assessments: two install practicals, two inspections, and a closed-book online exam. Centres vary how they run the week, but you are always taught the material before you are assessed on it. You have drilled the theory chapter by chapter, so here is how each one runs and how you walk in ready.

In this chapter
  • How assessment week runs, from the practicals to the online exam
  • A full mock exam that mirrors the real paper, unit by unit
  • How everything from Chapters 01 to 09 comes together for the day itself
By the end you'll know what to expect and be able to rehearse the whole exam.

Assessment week: how it runs

The week mixes instruction and assessment, and centres vary how they deliver it. You are taught the material for each unit, then assessed on it, so you never sit something you have not been shown. Four of the assessments are hands-on, in your own bay: two installs, Ex01 and Ex03, where you wire and terminate equipment to a drawing, and two inspections, Ex02 and Ex04, where you are handed a rig with faults built in and have to find and record them. Ex01 and Ex02 cover Ex d, e, n and p equipment; Ex03 and Ex04 cover intrinsically safe (Ex i) equipment. The week usually finishes with the online exam: 60 questions, 90 minutes, closed book, and every unit within it must be passed on its own. You are marked on getting it right and, above all, doing it safely.

The full mock exam

Sixty questions split across the four units, Ex01 to Ex04, on a strict ninety-minute clock, exactly like the real paper. Every sit pulls a fresh paper from the full bank, so it is never the same twice. When you finish you get your overall score and a unit-by-unit breakdown against the 80% target, so you know exactly which unit to go back and tighten.

Resits and the rules

EX01 · EX02 · EX03 · EX04

Each unit stands alone. You will only resit the unit you fail, not the whole exam week.

Multiple choice test

Four sections in one paper, Ex01 to Ex04. Pass every section, or resit the whole paper, not just the one you failed.

Resit

You get two further resit attempts, within twelve months of your original assessment. Fail those and you sit the whole course again.

Already drilled into the guide

Ten topic tests sit through the guide, each one where its material lives. The protection concepts alone carry six. The mock above is the full dress rehearsal.

You can now
  • Picture how the whole assessment week runs
  • Sit a full mock exam under real time and marking
  • See which unit to tighten from your unit-by-unit score
Next: The Cheat Sheet →
★ HEADLINE FEATURE
CompEx Ready · On-the-day quick reference
The essentials the core you need before you walk in
Zones0 cont · 1 likely · 2 fault
Gas groupsIIC › IIB › IIA
T-classT1 450 → T6 85
IP codesolids 0–6 · water 0–9
Protectiond · e · i · p · n
Fault toleranceGa 2 · Gb 1 · Gc 0
InspectionVisual · Close · Detailed
Standards-14 install · -17 inspect
1Area classification & marking
Zones
0 continuous · 1 likely · 2 fault only
  • How likely a flammable atmosphere is in the area
  • Zone 0 there continually or for long periods
  • Zone 1 likely in normal running
  • Zone 2 only if something goes wrong, and briefly
Grades of release
Continuous → 0 · Primary → 1 · Secondary → 2
  • How often a flammable substance escapes sets the zone
  • Continuous release feeds Zone 0
  • Primary, seen in normal running, feeds Zone 1
  • Secondary, not in normal running, feeds Zone 2
Zone → EPL → ATEX
0→Ga→1G · 1→Gb→2G · 2→Gc→3G
  • Three labels for the same protection level
  • EPL is the IEC label (Ga/Gb/Gc), ATEX category the EU one (1G/2G/3G)
  • Zone 0 → Ga → 1G · Zone 1 → Gb → 2G · Zone 2 → Gc → 3G
  • Higher-rated kit can drop into any lower zone
Faults tolerated
Ga two · Gb one · Gc none
  • Ga stays safe through two faults
  • Gb through one fault
  • Gc none, safe in normal operation only
Gas groups
IIC › IIB › IIA · higher covers lower
  • Gases are grouped by how easily they ignite
  • IIA hardest (propane) · IIB middle (ethylene)
  • IIC easiest and worst (hydrogen, acetylene)
  • Kit for a higher group covers the lower ones
  • Marked just II with no letter covers all Group II gases (IIA, IIB and IIC)
IIC ↔ N. America
IIC = A+B · IIB = C · IIA = D
  • North America (NEC) uses letter groups, not IIA/IIB/IIC
  • IIC = Groups A + B, the worst
  • IIB = Group C
  • IIA = Group D
T-class
T1 450 → T6 85°C · lower covers higher
  • T1 450°C down to T6 85°C surface temp
  • Must stay below the gas's ignition temperature
  • A colder-rated class covers the hotter ones
Cert letters
X special conditions · U component · Ta −20 to +40°C
  • X special conditions apply, read the cert
  • U certified component, not a full unit
  • Ta ambient range, default −20°C to +40°C
IP code
1st solids 0–6 · 2nd water 0–9 · min IP54
  • IP = Ingress Protection, how well the case seals out
  • 1st digit solids and dust, 0 to 6
  • 2nd digit water, 0 to 9
  • IP54 is a common minimum for Ex kit
Gas examples
IIA propane · IIB ethylene · IIC hydrogen, acetylene
  • Each group has a reference gas it is judged against
  • IIA propane · IIB ethylene
  • IIC hydrogen and acetylene, hardest to contain
  • Handle the reference gas, you handle the group
ATEX directives
114 = 2014/34/EU (kit) · 153 = 1999/92/EC (workers)
  • The two EU directives for explosive atmospheres
  • ATEX 114 (2014/34/EU) covers the equipment
  • ATEX 153 (1999/92/EC) covers protecting workers
Standards
-0 general · 10-1 classify · 14 install · 17 inspect · 19 repair
  • The IEC 60079 series, each part covers one job
  • -0 general · -10-1 classifying the area
  • -14 installing · -17 inspecting · -19 repair
Zones
▲ most dangerous
0 continuous
1 likely
2 fault only
Gas groups
▲ hardest
IIC Hydrogen
IIB Ethylene
IIA Propane
T-class
▲ hotter
T1 450°C
T2 300°C
T3 200°C
T4 135°C
T5 100°C
T6 85°C
Fault tolerance
▲ most protection
Ga 2 faults
Gb 1 fault
Gc none
Tables · tap to open
ZoneAtmosphere isExample
0Present continually or long periodsVapour space in a tank
1Likely in normal operationPump and compressor seals
2Not likely, short-lived if it doesPipe joints and flanges
GradeHow oftenZone
ContinuousMore than 1000 hrs/yr0
Primary10 to 1000 hrs/yr1
Secondary0 to 10 hrs/yr2
GroupWhere it appliesExamples
IMining (firedamp)Methane
IISurface, gas & vapourIIA, IIB, IIC
IIISurface, dustIIIA, IIIB, IIIC
GroupVolatilityRep. gas
IICMost volatile, least energy (~5 gases)Hydrogen, acetylene
IIBMore volatile than IIA (~67 gases)Ethylene
IIALeast volatile, most energy (~252 gases)Propane
GasIgnition tempT-class
Methane595°CT1
Hydrogen560°CT1
Propane470°CT1
Ethylene425°CT2
Acetylene305°CT2
Hexane225°CT3
Carbon disulphide95°CT6
EPLGroupATEXZoneProtection
GaII gas1G0Very high, 2 faults
GbII gas2G1High, 1 fault
GcII gas3G2Normal
MaI miningM1n/aVery high, stays energised
MbI miningM2n/aHigh, de-energised in gas
DaIII dust1D20Very high
DbIII dust2D21High
DcIII dust3D22Normal
T1T2T3T4T5T6
450°C300°C200°C135°C100°C85°C
1st digit: solids & dust
#Keeps out
0Nothing
1>50 mm (hand)
2>12.5 mm (finger)
3>2.5 mm (tool)
4>1 mm (wire)
5Dust protected
6Dust tight
2nd digit: water
#Protects against
0Nothing
1Dripping
2Dripping (15° tilt)
3Spraying (60°)
4Splashing
5Jets
6Powerful jets
7Immersion ≤1 m
8Immersion >1 m
DirectiveKnown asCoversUK law
2014/34/EUATEX 114The equipmentEPS Regs
1999/92/ECATEX 153Protecting workersDSEAR
2The science
Fire triangle
fuel + oxygen + ignition
  • Fuel, oxygen, ignition all three to burn
  • Remove any one and it can't ignite
  • Every Ex concept removes one leg
Flammable range
LFL to UFL · lean to rich
  • Only a certain mix of gas and air will ignite
  • Below the LFL (lower flammable limit) too lean
  • Above the UFL (upper flammable limit) too rich
  • Between the two, it goes
Vapour density
<1 rises (H₂, methane) · >1 sinks (most)
  • Weight of the gas compared to air
  • Below 1 rises and clears (hydrogen, methane)
  • Above 1 sinks and pools low (most gases)
  • Heavy vapours collect in pits and trenches
Flash point
<37°C flammable · 37–93°C combustible
  • Lowest temp giving off enough vapour to ignite
  • Below 37°C flammable
  • 37 to 93°C combustible
Flammable range
too lean
it ignites
too rich
Below the LFL too lean, above the UFL too rich. Only the band between goes.
Tables · tap to open
GasMin ignition energy
Hydrogen (IIC)~0.02 mJ
Ethylene (IIB)~0.08 mJ
Propane (IIA)~0.26 mJ
3Protection concepts
Ex d flameproof
contains the blast · cools via flamepath · ~10 bar
  • Contains an internal explosion
  • Flamepath cools escaping gas below ignition
  • Tested to around 10 bar
  • Never alter the internal layout: it can cause pressure piling, where a first ignition pre-compresses gas in a linked section so the next blast is far bigger
Ex e
increased safety · stops arcs & hot spots
  • Increased safety on non-sparking kit
  • Better terminals, clearances, creepage
  • No arcs, no hot spots
Ex i intrinsic safety
limits energy · only Zone 0 & live work · ia 2 / ib 1 / ic 0 faults
  • Limits energy so nothing can ignite the gas
  • Only concept for live work and Zone 0
  • ia two faults, ib one, ic none
Ex p
pressurised clean air / inert · px py pz
  • Positive pressure keeps the gas out
  • px Zone 1 to safe
  • py Zone 1 to Zone 2
  • pz Zone 2 to safe
Ex n
safe in normal operation · Zone 2
  • Zone 2 only
  • Won't ignite the atmosphere in normal use
  • Subtypes: non-sparking, enclosed-break, restricted-breathing
Concept standards
d 1 · p 2 · q 5 · o 6 · e 7 · i 11 · n 15 · m 18
  • Each protection concept has its own part of IEC 60079
  • The letter is the concept, the number is its part
  • Ex d flameproof 1 · Ex p pressurised 2 · Ex e increased safety 7
  • Ex i intrinsic 11 · Ex n type n 15 · Ex m encapsulation 18
Ex e tE
motor trip time ≥ 5 s · clearance 6 mm
  • tE time a stalled motor runs before it overheats
  • Must trip within tE, at least 5 seconds
  • 6 mm minimum distance between live terminals
Ex i barrier
Um ≤ 250 V at non-IS side · 3 diodes = ia
  • A safety barrier limits the energy reaching the hazardous area
  • Um is the most the non-IS (safe) side may see, 250 V
  • Zener diodes clamp the voltage, resistors limit the current, a fault diverts to earth
  • Three diodes = ia, the triple redundancy survives two faults
Tables · tap to open
MethodConcepts
Contain the explosionEx d
Keep the substance outEx p, o, q, m
Stop sparks & hot surfacesEx e, n
Quench it as it escapesEx d flamepaths
Limit the energyEx i
ConceptMarkIEC 60079-
FlameproofEx d-1
PressurisedEx p-2
Powder filledEx q-5
Oil immersionEx o-6
Increased safetyEx e-7
Intrinsic safetyEx i-11
Reduced riskEx n-15
EncapsulationEx m-18
Optical radiationEx op-28
Dust by enclosureEx t-31
SpecialEx s-33
Sub-typeWhat it is
Ex nANon-sparking, now Ex ec
Ex nCSealed or hermetic devices
Ex nRRestricted breathing
Ex nLEnergy limited, now Ex ic
TypeReduces inside toSuits
Ex pxNon-hazardousZone 1
Ex pyZone 2Zone 1
Ex pzZone 2Zone 2
GroupMin gap to obstruction
IIA≥ 10 mm
IIB≥ 30 mm
IIC≥ 40 mm
CheckMeaning
Uo ≤ UiVoltage out ≤ device max
Io ≤ IiCurrent out ≤ device max
Po ≤ PiPower out ≤ device max
4Glands, install & inspection
Ex d gland
5 full threads (6 mm) · barrier into IIC / IIB+H₂
  • 5 full threads (about 6 mm) form the flamepath
  • Barrier gland where the standard calls for it
  • e.g. IIC, or IIB with hydrogen
IP washer
if thread <6 mm or a clearance hole
  • Where thread engagement is under 6 mm
  • Or where it enters a plain clearance hole
  • Holds the ingress rating
Certified gland
full 3-row marking · else a fault
  • A certified gland shows a full three-row marking
  • That marking is the proof it is certified
  • Missing or incomplete, you cannot prove it, so it counts as uncertified
  • An uncertified gland is a fault
Inspection grades
Visual · Close · Detailed
  • Visual obvious defects, no tools
  • Close adds covers and access equipment
  • Detailed adds opening up, de-energised
Inspection types
Initial detailed · Periodic ≤3 yrs · Sample
  • Initial detailed check when first installed
  • Periodic at intervals no longer than 3 years
  • Sample a proportion checked in between
Fault codes
A general · B install · C environment
  • In CompEx a fault’s letter is its section of the IEC 60079-17 inspection schedule, the number is the check
  • A General: the equipment itself, zone, group, temp class, IP, enclosure, glands, terminals
  • B Installation: cables, sealing, earthing, protective devices
  • C Environment: corrosion, dust and dirt, clean and dry
  • On real sites and QA/QC punch lists A/B/C often mean severity instead, so know both
IS earth
1×4 mm² or 2×2.5 mm² · 50 mm segregation
  • The earth for intrinsically safe (IS) circuits
  • 1 × 4 mm² or 2 × 2.5 mm² conductor
  • Kept apart from non-IS wiring, at least 50 mm
IS wiring
light blue · 1 core/terminal · 3 mm to earth · 6 mm between circuits
  • Light blue is the identification colour for intrinsically safe cables and glands
  • One conductor per terminal unless the certificate says otherwise
  • 3 mm clearance from an IS conductor to earth, 6 mm between separate IS circuits
  • Minimum IP2X where none is marked
Cables
Al conductors ≥ 16 mm² · 20 mm inner seen at gland
  • Aluminium conductors only at 16 mm² and above
  • At the gland, 20 mm of inner sheath should show
  • Proves the cable is entered and sealed right
Isolation
break all live + neutral · double-pole minimum
  • Isolation means fully cutting the supply so the circuit is dead and safe to work on
  • Break every live conductor, including the neutral, since a fault can make the neutral live
  • So double-pole is the minimum on single phase
Gas free certificate
written proof the area is clear before risky work
  • A gas free certificate is written confirmation the area has been tested and proven clear of any flammable atmosphere
  • Needed before work that would otherwise be unsafe: hot work, opening equipment for a detailed inspection, or using a test meter or uncertified kit in the area
  • It lets you treat the area as a normal one, for that job only
Inspection grades
▼ more thorough
Visual by eye
Close + access gear
Detailed + opened up
Each includes the one before it.
Tables · tap to open
Cable entryIP washer
Thread under 6 mmYes, required
Thread 6 mm or moreNot needed
Clearance holeYes, a must
GradeWhat it coversExample fault
VisualDefects by eye, no toolsMissing bolt
CloseAs visual + access gear, not openedUncertified gland
DetailedAs close + enclosure openedLoose terminations
TypeWhenGrade
InitialBefore service (handover)Detailed
PeriodicRoutine, not more than 3 yrsVisual or Close
SampleTo adjust the periodic frequencyAny
5The exam
Format
60 questions · 90 min · closed book
  • 60 questions, multiple choice
  • 90 minutes, about 90 seconds each
  • Closed book, no notes
Pass
Every unit on its own (Ex01–04)
  • Pass every unit, Ex01 to Ex04
  • No averaging, every unit stands alone
Resits
2 further attempts · 12-month window
  • Two further attempts per unit
  • Inside a 12-month window
Validity
cert lasts 5 years · refresher to renew
  • Certificate lasts 5 years
  • Refresher to renew
  • Why the market keeps coming back
Tables · tap to open
Visual
  • Wrong-zone equipment
  • Missing or incorrect bolts
  • Damaged cable sheath
  • Missing or incorrect stopper
  • Stopper fitted via an adaptor
  • Missing cable ID
  • Uncertified or incorrect gland
  • Flamepath obstruction (flange joints)
  • Enclosure damage
Close
  • Loose bolts or glands
  • Wrong gas group
  • Wrong temperature class
  • Missing restricted-breathing washer (Ex nR)
  • Non-barrier gland on Ex d
Detailed
  • Damaged flamepath
  • Gasket fitted in the flamepath
  • Missing or damaged gaskets
  • Loose connections
  • Exposed conductor over 1 mm
  • Uncertified or damaged terminals
  • Wrong lamp wattage
Visual
  • Missing or damaged IS labels
  • Incorrect IS earth size (should be 1×4 mm² or 2×2.5 mm²)
  • Missing stoppers
  • Incorrect IP washers
  • Earth flying leads missing
  • Wrong-zone equipment
  • IS and non-IS wiring under 50 mm apart
Close
  • Serial numbers and brands do not match the drawings
  • Loose glands
  • Loose bolts
Detailed
  • Barrier box wired incorrectly
  • Wrong or crossed barrier terminals
  • Barrier fitted upside-down
  • Loose IS connections
  • Poor earth to the Zener or galvanic isolator
  • IS cables tied to power
  • Segregation under 50 mm
★ MAKE IT YOURS

1 Star it

As you read, tap the beside any highlighted fact, any table, or any cheat-sheet card. That fact is now saved.

2 It saves itself

Everything you star gathers in the ★ Revise button in the corner, and in Your saved facts at the top of the Cheat Sheet. It is kept on your device, so it is there tomorrow.

3 Revise from your list

Open your Revise list any time. Tap any item to jump straight back to it in the guide. Build it, drill it, own it.

Tip: pair it with Revision mode

Turn Revision mode on at the top of the page and every fact that comes up in the exam lights up. Star the ones you keep forgetting, and you have built a targeted revision guide from the exact bits you need, in your own hands.

TEST YOURSELF

Tap any test below to practise and your best score is saved on each.

Coming Soon
Ex05-06
Combustible Dust atmospheres
Coming soon
Ex07-08
Petrol Forecourts
Coming soon
Ex11
Mechanical
Coming soon
Ex12
Design and Project Engineers
Coming soon
Ex14
Responsible Person
Coming soon
ExF / ExF+
Foundation
Coming soon

Thank you

Thanks for using CompEx Ready. Everything for the Ex01-04 assessments is here, and the rest is down to your own preparation. Good luck on the day.

Any problems, queries or questions, contact support@compexready.com.
